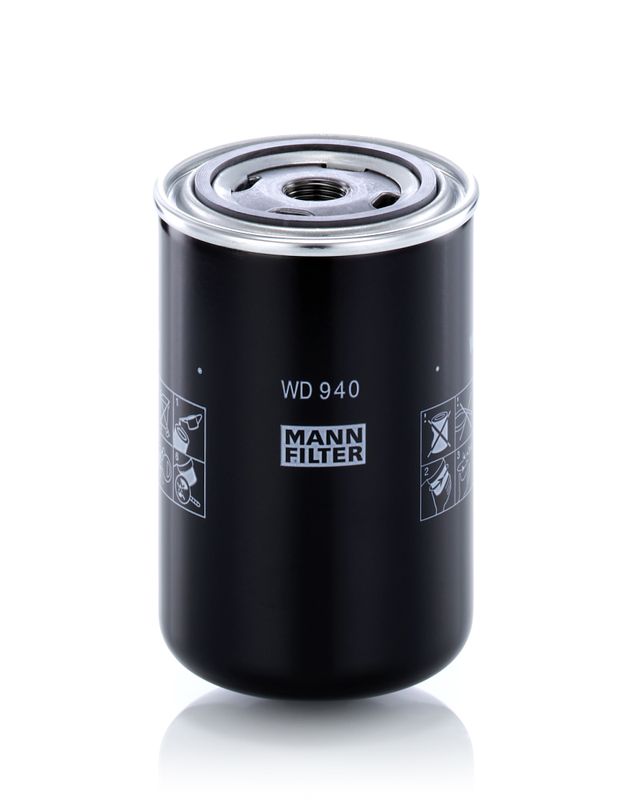

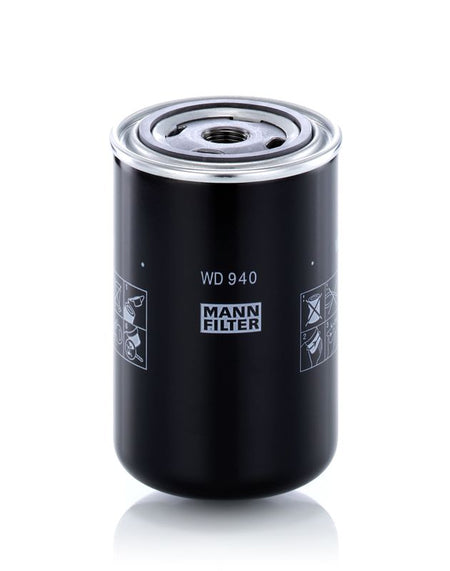

Mann & Hummel WD940 Oil Filter
Your selected vehicle
Regular price
£23.72
inc. VAT
Pay in 3 interest-free payments with Klarna
Standard delivery
Free standard delivery is available for eligible UK mainland orders. Charges may apply for express services and non-mainland destinations. See our delivery information for details.
The Mann & Hummel WD940 Oil Filter is a replacement filtration component that helps retain contamination while allowing the relevant air, oil, fuel or cabin-air flow. Its catalogue specification records spin-on Filter and for high-pressure levels filter design, 93 mm outer diameter, 63 mm gasket inside diameter, and 72 mm gasket outside diameter. Compare the reference, filter design, dimensions and vehicle application data below with the removed part before ordering, because filter formats can vary within the same model range.
Function :
Oil Filter
Filter type :
Spin-on Filter
EU General Product Safety Regulation (GPSR) :
IEC 60417-6183 mechanical expertise required
Filter type :
for high-pressure levels
Height [mm] :
147
Thread Size :
3/4-16 UNF-1B
Outer Diameter [mm] :
93
Bypass Valve Opening Pressure [bar] :
2.5
Gasket inside diameter [mm] :
63
Gasket outside diameter [mm] :
72
SVHC :
No SVHC present!
- Vendor MANN & HUMMEL
- SKU WD940
- BOMAG : 05821203
- SAF : 07 23 22 SF 20 P
- FLOTTMANN WERKE : 0481.2900.0
- INGERSOLL-RAND : 9212 8859
- KRAMER : 000 363 40 34 000 363 61 34 100 000 565 1000000565
- SULLAIR : 5860 68528935
- MANITOU : 137 658 C 4 740 8 P 47
- AMMANN : 1-SF20P10MY
- HENGST FILTER : H17WD01
- HENGST FILTER : HY17WD01
