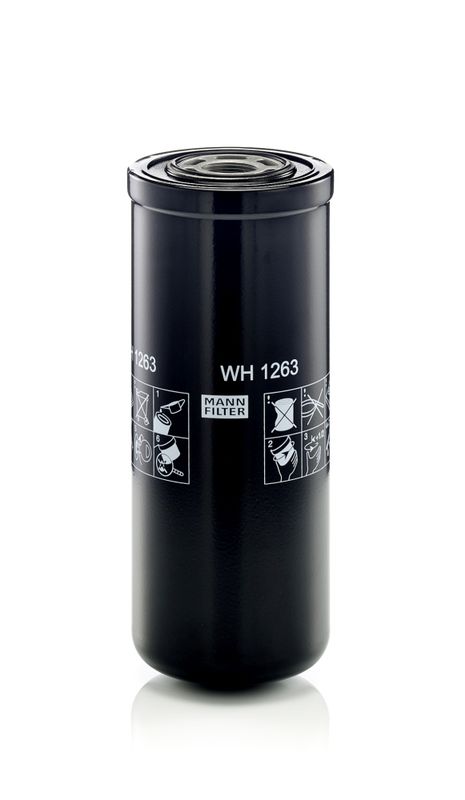

Mann & Hummel WH1263 Hydraulic Filter, automatic transmission
Your selected vehicle
Regular price
£65.72
inc. VAT
Pay in 3 interest-free payments with Klarna
Standard delivery
Free standard delivery is available for eligible UK mainland orders. Charges may apply for express services and non-mainland destinations. See our delivery information for details.
The Mann & Hummel WH1263 Hydraulic Filter, automatic transmission is a replacement filtration component that helps retain contamination while allowing the relevant air, oil, fuel or cabin-air flow. Its catalogue specification records spin-on Filter filter design, 116 mm outer diameter, 63 mm gasket inside diameter, and 70 mm gasket outside diameter. Compare the reference, filter design, dimensions and vehicle application data below with the removed part before ordering, because filter formats can vary within the same model range.
Function :
Hydraulic Filter, automatic transmission
Filter type :
Spin-on Filter
EU General Product Safety Regulation (GPSR) :
IEC 60417-6183 mechanical expertise required
Height [mm] :
295
Thread Size :
1 3/8-12 UNF
Outer Diameter [mm] :
116
Gasket inside diameter [mm] :
63
Gasket outside diameter [mm] :
70
SVHC :
No SVHC present!
- Vendor MANN & HUMMEL
- SKU WH1263
- VOLVO : 11809003 VOE15709342
- STEYR : 47131181 86018758
- CASE IH : 254353A1 431588A1 47131182 48152232 84226263 85825356 87404986 D149921
- CLAAS : 00 0364 588 0
- JOHN DEERE : AT129775 YZ502378
- CATERPILLAR : 126-91818 158-3491 465-6506 6E-6408
- AGCO : 534045D1
- SPERRY NEW HOLLAND : 435141A1 47131178 47131182 48139857 48142232 84226263 84226272 86018758 86989733
- FEBI BILSTEIN : 102781
- FEBI BILSTEIN : 175374
- HENGST FILTER : H304W
- HENGST FILTER : HY363W
