Napa NAL1183 Alternator - 1
Napa NAL1183 Alternator - 1
NAPA

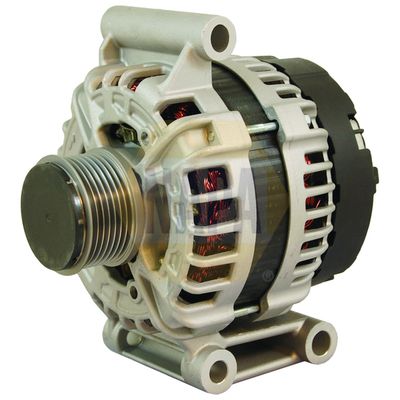

Napa NAL1183 Alternator

SKU: NAL1183
Your selected vehicle
In stock
Orders placed by 17:00 are usually dispatched the same working day
£189.69 inc. VAT
Pay in 3 interest-free payments with Klarna

Standard delivery

Free standard delivery on UK mainland orders. See our delivery information for coverage and current dispatch estimates.

FORD
RANGER (TKE)
Description Cylinder Capacity Horse Power Year
2.2 TDCi 2198 CCM 125 HP From 04/2011
2.2 TDCi 4x4 2198 CCM 125 HP From 04/2011
2.2 TDCi 4x4 2198 CCM 150 HP From 04/2011
3.2 TDCi 4x4 3198 CCM 200 HP From 04/2011
2.2 TDCi 2198 CCM 120 HP From 04/2011
2.2 TDCi 2198 CCM 150 HP From 11/2011
2.2 TDCi 2198 CCM 160 HP From 05/2015
TRANSIT Platform/Chassis (FM_ _, FN_ _, FF_ _)
Description Cylinder Capacity Horse Power Year
2.2 TDCi RWD 2198 CCM 100 HP 10/2011 - 08/2014
2.2 TDCi RWD 2198 CCM 125 HP 10/2011 - 08/2014
2.2 TDCi 4x4 2198 CCM 125 HP 10/2011 - 08/2014
2.2 TDCi RWD 2198 CCM 155 HP 10/2011 - 08/2014
TRANSIT Bus (FD_ _, FB_ _, FS_ _, FZ_ _, FC_ _)
Description Cylinder Capacity Horse Power Year
2.2 TDCi RWD 2198 CCM 100 HP 10/2011 - 08/2014
2.2 TDCi RWD 2198 CCM 125 HP 09/2011 - 12/2014
2.2 TDCi RWD 2198 CCM 135 HP 09/2011 - 08/2014
TRANSIT Van (FA_ _)
Description Cylinder Capacity Horse Power Year
2.2 TDCi RWD 2198 CCM 100 HP 10/2011 - 08/2014
2.2 TDCi RWD 2198 CCM 125 HP 09/2011 - 12/2014
2.2 TDCi RWD 2198 CCM 155 HP 10/2011 - 08/2014
2.2 TDCi 4x4 2198 CCM 125 HP 10/2011 - 08/2014
TRANSIT V363 Platform/Chassis (FED, FFD)
Description Cylinder Capacity Horse Power Year
2.2 TDCi RWD 2198 CCM 100 HP 08/2013 - 12/2018
2.2 TDCi RWD 2198 CCM 125 HP 08/2013 - 12/2018
2.2 TDCi 4x4 2198 CCM 125 HP 08/2013 - 12/2018
2.2 TDCi RWD 2198 CCM 155 HP 08/2013 - 12/2018
2.2 TDCi 4x4 2198 CCM 155 HP 08/2013 - 12/2018
2.2 TDCi RWD 2198 CCM 135 HP 08/2013 - 12/2018
TRANSIT V363 Bus (FAD, FBD)
Description Cylinder Capacity Horse Power Year
2.2 TDCi RWD 2198 CCM 125 HP 08/2013 - 12/2018
2.2 TDCi RWD 2198 CCM 155 HP 08/2013 - 12/2018
2.2 TDCi RWD 2198 CCM 100 HP 08/2013 - 12/2018
2.2 TDCi 4x4 2198 CCM 125 HP 08/2013 - 12/2018
2.2 TDCi RWD 2198 CCM 135 HP 08/2013 - 12/2018
2.2 TDCi All-wheel Drive 2198 CCM 155 HP 08/2015 - 12/2018
TRANSIT V363 Van (FCD, FDD)
Description Cylinder Capacity Horse Power Year
2.2 TDCi RWD 2198 CCM 155 HP 08/2013 - 12/2018
2.2 TDCi 4x4 2198 CCM 155 HP 08/2015 - 12/2018
2.2 TDCi RWD 2198 CCM 125 HP 08/2013 - 12/2018
2.2 TDCi 4x4 2198 CCM 125 HP 08/2013 - 12/2018
2.2 TDCi RWD 2198 CCM 100 HP 08/2013 - 12/2018

The Napa NAL1183 Alternator is a replacement starting or charging-system component that supports electrical power generation, storage or engine cranking in the vehicle. Its catalogue specification records 12 V electrical rating, 3,401 mm length, 2,250 mm width, and 1,999 mm height. Match the reference, voltage, output or capacity, terminals, mounting and vehicle application before fitting; isolate the electrical system and follow the manufacturer's coding procedure where required.

Function : Alternator
Voltage [V] : 12
Alternator Charging Current [A] : 150
Number of ribs : 7
Pulleys : with freewheel belt pulley
Belt Pulley Ø [mm] : 59
Length [mm] : 3,401
Width [mm] : 2,250
Height [mm] : 1,999
Manufacturer Restriction : Bosch
Construction Year to : 09.2015
  • Vendor NAPA
  • SKU NAL1183
  • Barcode 5056197266281
  • APEC : AAL1183
  • FEBI BILSTEIN : 193303
  • WAI : 20035N
  • WAI : A134.286
