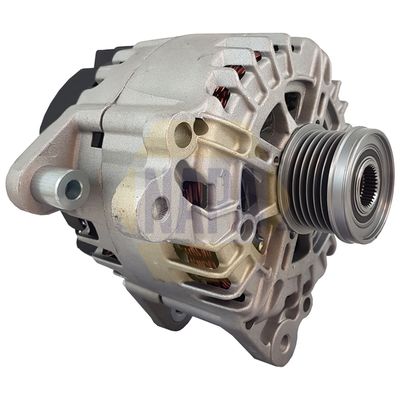

Napa NAL1254 Alternator
Your selected vehicle
Regular price
£237.25
inc. VAT
Pay in 3 interest-free payments with Klarna
Standard delivery
Free standard delivery is available for eligible UK mainland orders. Charges may apply for express services and non-mainland destinations. See our delivery information for details.
The Napa NAL1254 Alternator is a replacement starting or charging-system component that supports electrical power generation, storage or engine cranking in the vehicle. Its catalogue specification records 12 V electrical rating, 2,601 mm length, 2,250 mm width, and 1,999 mm height. Match the reference, voltage, output or capacity, terminals, mounting and vehicle application before fitting; isolate the electrical system and follow the manufacturer's coding procedure where required.
Function :
Alternator
Voltage [V] :
12
Alternator Charging Current [A] :
140
Number of ribs :
6
Pulleys :
with freewheel belt pulley
Length [mm] :
2,601
Width [mm] :
2,250
Height [mm] :
1,999
Manufacturer Restriction :
Valeo
Vehicle Equipment :
for vehicles with start-stop function
Construction Year from :
01.2010
Engine Code :
CAXC
for PR number :
7L6
for PR number :
7L7
- Vendor NAPA
- SKU NAL1254
- AUDI : 03C903023S 03C903023SX 03C 903 023 T 03C-903-023-T 03C903024F 03C903024FX
- SEAT : 03C903023S 03C903023SX 03C903024F 03C903024FX
- SKODA : 03C903023S 03C903023SX 03C903024F 03C903024FX
- VW : 03C903023S 03C903023SX 03C903024F 03C903024FX
- VAG : 03C903023S 03C903023SX 03C 903 023 T 03C903023T 03C-903-023-T 03C 903 023 TX 03C903023TX 03C-903-023TX 03C903024F 03C903024FX
- APEC : AAL1254
- WAI : 20147N
- WAI : A132.099
