Napa NAL1403 Alternator - 1
Napa NAL1403 Alternator - 1
NAPA

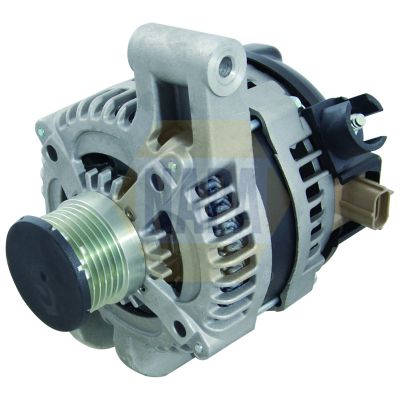

Napa NAL1403 Alternator

SKU: NAL1403
Your selected vehicle
Only 1 left
Low inventory - Hurry! — Orders placed by 17:00 are usually dispatched the same working day
£149.60 inc. VAT
Pay in 3 interest-free payments with Klarna

Standard delivery

Free standard delivery on UK mainland orders. See our delivery information for coverage and current dispatch estimates.

VOLVO
C30 (533)
Description Cylinder Capacity Horse Power Year
1.8 1798 CCM 125 HP 10/2006 - 12/2012
2.0 1999 CCM 145 HP 10/2006 - 12/2012
1.8 FlexFuel 1798 CCM 125 HP 01/2007 - 12/2012
2.0 FlexFuel 1999 CCM 146 HP 01/2010 - 12/2012
S40 II (544)
Description Cylinder Capacity Horse Power Year
2.0 F 1999 CCM 146 HP 10/2009 - 12/2012
1.8 1798 CCM 125 HP 04/2004 - 12/2010
2.0 1999 CCM 146 HP 10/2006 - 12/2012
V50 (545)
Description Cylinder Capacity Horse Power Year
1.8 1798 CCM 125 HP 04/2004 - 12/2010
1.6 1596 CCM 101 HP 01/2005 - 12/2012
2.0 1999 CCM 146 HP 10/2006 - 12/2012
1.8 FlexFuel 1798 CCM 125 HP 01/2005 - 12/2010

The Napa NAL1403 Alternator is a replacement starting or charging-system component that supports electrical power generation, storage or engine cranking in the vehicle. Its catalogue specification records 12 V electrical rating, 2,090 mm length, 1,849 mm width, and 1,801 mm height. Match the reference, voltage, output or capacity, terminals, mounting and vehicle application before fitting; isolate the electrical system and follow the manufacturer's coding procedure where required.

Function : Alternator
Voltage [V] : 12
Alternator Charging Current [A] : 150
Number of ribs : 6
Pulleys : with freewheel belt pulley
Length [mm] : 2,090
Width [mm] : 1,849
Height [mm] : 1,801
Manufacturer Restriction : Denso
Rotation Direction : Clockwise rotation
Construction Year to : 12.2010
  • Vendor NAPA
  • SKU NAL1403
  • Barcode 5056197268476
  • FORD : 1633079 3M5T10300NB 3M5T-10300-NB 3M5T10300NC 3M5T-10300-NC
  • VOLVO : 30667072 30795495 36002575 8603272
  • APEC : AAL1403
  • BORG & BECK : BBA2552
  • WAI : 24070N
  • WAI : A134.533
