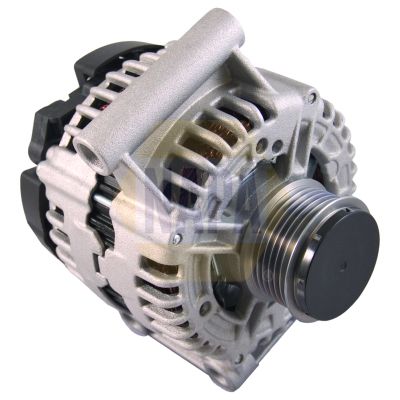

Napa NAL1503 Alternator

SKU: NAL1503
Your selected vehicle
In stock
Order by 17:00 for same-day dispatch
£152.73 inc. VAT
Pay in 3 interest-free payments with Klarna

Standard delivery

Free standard delivery is available for eligible UK mainland orders. Charges may apply for express services and non-mainland destinations. See our delivery information for details.

CITROËN
RELAY III Platform/Chassis
Description Cylinder Capacity Horse Power Year
2.2 HDi 100 2198 CCM 101 HP 10/2006 - 04/2012
2.2 HDi 120 2198 CCM 120 HP 10/2006 - 04/2012
RELAY III Bus
Description Cylinder Capacity Horse Power Year
2.2 HDi 100 2198 CCM 101 HP 03/2009 - 06/2011
2.2 HDi 120 2198 CCM 120 HP 04/2006 - 12/2016
RELAY III Van
Description Cylinder Capacity Horse Power Year
2.2 HDi 100 2198 CCM 101 HP 04/2006 - 12/2012
2.2 HDi 120 2198 CCM 120 HP 04/2006 - 12/2016
FIAT
DUCATO Platform/Chassis (250_)
Description Cylinder Capacity Horse Power Year
100 Multijet 2,2 D 2198 CCM 101 HP 07/2006 - 05/2011
DUCATO Bus (250_)
Description Cylinder Capacity Horse Power Year
100 Multijet 2,2 D 2198 CCM 101 HP 07/2006 - 05/2011
DUCATO Van (250_)
Description Cylinder Capacity Horse Power Year
100 Multijet 2,2 D 2198 CCM 101 HP 07/2006 - 05/2011
FORD
TRANSIT Platform/Chassis (FM_ _, FN_ _, FF_ _)
Description Cylinder Capacity Horse Power Year
2.2 TDCi 2198 CCM 110 HP 04/2006 - 08/2014
2.2 TDCi 2198 CCM 85 HP 04/2006 - 08/2014
2.2 TDCi 2198 CCM 130 HP 04/2006 - 08/2014
TRANSIT Bus (FD_ _, FB_ _, FS_ _, FZ_ _, FC_ _)
Description Cylinder Capacity Horse Power Year
2.2 TDCi 2198 CCM 85 HP 04/2006 - 08/2014
2.2 TDCi 2198 CCM 110 HP 04/2006 - 08/2014
2.2 TDCi 2198 CCM 130 HP 04/2006 - 08/2014
2.2 TDCi 2198 CCM 140 HP 10/2007 - 08/2014
2.2 TDCi 2198 CCM 115 HP 10/2008 - 08/2014
TRANSIT Van (FA_ _)
Description Cylinder Capacity Horse Power Year
2.2 TDCi 2198 CCM 110 HP 04/2006 - 08/2014
2.2 TDCi 2198 CCM 130 HP 04/2006 - 08/2014
2.2 TDCi 2198 CCM 85 HP 04/2006 - 08/2014
TRANSIT TOURNEO Bus
Description Cylinder Capacity Horse Power Year
2.2 TDCi 2198 CCM 110 HP 07/2006 - 08/2014
2.2 TDCi 2198 CCM 131 HP 07/2006 - 08/2014
2.2 TDCi 2198 CCM 140 HP 10/2007 - 08/2014
2.2 TDCi 2198 CCM 115 HP 10/2008 - 08/2014
2.2 2198 CCM 125 HP 10/2011 - 08/2014
PEUGEOT
BOXER Bus
Description Cylinder Capacity Horse Power Year
2.2 HDi 100 2198 CCM 101 HP From 04/2006
2.2 HDi 120 2198 CCM 120 HP 04/2006 - 12/2016
3.0 HDi 160 2999 CCM 156 HP 04/2006 - 12/2015
BOXER Platform/Chassis
Description Cylinder Capacity Horse Power Year
2.2 HDi 100 2198 CCM 101 HP From 04/2006
2.2 HDi 120 2198 CCM 120 HP 04/2006 - 12/2016
3.0 HDi 160 2999 CCM 156 HP 04/2006 - 12/2015
3.0 HDi 155 2999 CCM 156 HP 04/2006 - 12/2015
BOXER Van
Description Cylinder Capacity Horse Power Year
2.2 HDi 100 2198 CCM 101 HP From 04/2006
2.2 HDi 120 2198 CCM 120 HP 04/2006 - 12/2016
3.0 HDi 160 2999 CCM 156 HP 04/2006 - 12/2015
3.0 HDi 155 2999 CCM 156 HP 07/2006 - 12/2015

The Napa NAL1503 Alternator is a replacement starting or charging-system component that supports electrical power generation, storage or engine cranking in the vehicle. Its catalogue specification records 12 V electrical rating, 2,601 mm length, 2,250 mm width, and 1,999 mm height. Match the reference, voltage, output or capacity, terminals, mounting and vehicle application before fitting; isolate the electrical system and follow the manufacturer's coding procedure where required.

Function : Alternator
Voltage [V] : 12
Alternator Charging Current [A] : 150
Number of ribs : 6
Pulleys : with freewheel belt pulley
Belt Pulley Ø [mm] : 58
Length [mm] : 2,601
Width [mm] : 2,250
Height [mm] : 1,999
Manufacturer Restriction : Bosch
Rotation Direction : Clockwise rotation
  • Vendor NAPA
  • SKU NAL1503
  • Barcode 5056197269473
  • APEC : AAL1503
  • BORG & BECK : BBA2517
  • FEBI BILSTEIN : 101556
  • FEBI BILSTEIN : 101713
  • WAI : 23925N
  • WAI : A131.997
