Napa NBD5001 Brake Disc - 1
Napa NBD5001 Brake Disc - 2
Napa NBD5001 Brake Disc - 1
Napa NBD5001 Brake Disc - 2
NAPA

Napa NBD5001 Brake Disc

SKU: NBD5001
Your selected vehicle
In stock
Order by 17:00 for same-day dispatch
£41.14 inc. VAT
Pay in 3 interest-free payments with Klarna

Standard delivery

Free standard delivery is available for eligible UK mainland orders. Charges may apply for express services and non-mainland destinations. See our delivery information for details.

SUZUKI
S-CROSS
Description Cylinder Capacity Horse Power Year
1.4 Smart Hybrid AllGrip (AKP414, AKK414) 1373 CCM 129 HP From 01/2022
1.4 Smart Hybrid (AKP414, AKK414) 1373 CCM 129 HP From 01/2022
1.5 Hybrid (AKK415) 1462 CCM 116 HP From 01/2022
1.5 Hybrid AllGrip (AKK415) 1462 CCM 116 HP From 01/2022
SX4 S-CROSS (JY)
Description Cylinder Capacity Horse Power Year
1.6 AllGrip (AKK 416) 1586 CCM 120 HP 08/2013 - 06/2022
1.6 DDiS (AKK 416D) 1598 CCM 120 HP 08/2013 - 06/2022
1.6 DDiS AllGrip (AKK 416D) 1598 CCM 120 HP 08/2013 - 06/2022
1.6 (AKK 416) 1586 CCM 120 HP 08/2013 - 06/2022
1.6 (AKK416, YA22S) 1586 CCM 117 HP 12/2013 - 06/2022
1.6 AllGrip (AKK416, YB22S) 1586 CCM 117 HP 12/2013 - 06/2022
1.4 T (AKK414) 1373 CCM 140 HP 08/2016 - 06/2022
1.4 T AllGrip (AKK414) 1373 CCM 140 HP 08/2016 - 06/2022
1.0 (AKK 310) 998 CCM 111 HP 08/2016 - 06/2022
1.0 AllGrip (AKK 310) 998 CCM 111 HP 08/2016 - 06/2022
1.4 Hybrid (Mild Hybrid) AllGrip (AKK 414) 1373 CCM 129 HP 08/2019 - 06/2022
1.4 Hybrid (Mild Hybrid) (AKK 414) 1373 CCM 129 HP 08/2019 - 06/2022
VITARA (LY)
Description Cylinder Capacity Horse Power Year
1.6 (APK 416) 1586 CCM 120 HP From 02/2015
1.6 AllGrip (APK 416) 1586 CCM 120 HP From 02/2015
1.6 DDiS (APK 416D) 1598 CCM 120 HP From 02/2015
1.6 DDiS AllGrip (APK416D) 1598 CCM 120 HP From 02/2015
1.4 T (APK414) 1373 CCM 140 HP From 09/2015
1.4 T AllGrip (APK414) 1373 CCM 140 HP From 09/2015
1.6 (APK416, YD21S) 1586 CCM 117 HP From 05/2015
1.6 AllGrip (APK416, YE21S) 1586 CCM 117 HP From 05/2015
1.6 AllGrip 1586 CCM 118 HP From 02/2015
1.6 1586 CCM 118 HP From 02/2015
1.0 (APK 310) 998 CCM 111 HP From 10/2018
1.0 AllGrip (APK 310) 998 CCM 111 HP From 10/2018
1.4 Hybrid (Mild Hybrid) AllGrip (APK414) 1373 CCM 129 HP From 07/2019
1.4 Hybrid (Mild Hybrid) (APK414) 1373 CCM 129 HP From 07/2019
1.5 Hybrid AllGrip 1462 CCM 116 HP From 01/2022

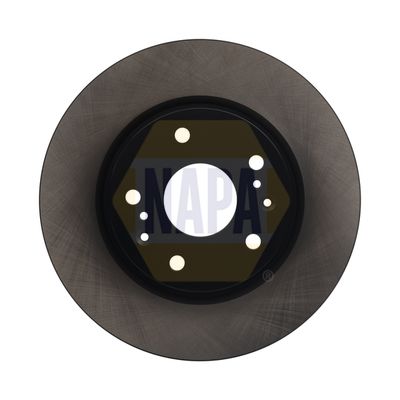

The Napa NBD5001 Brake Disc is a replacement braking component that provides the rotating friction surface acted on by the pads or shoes. Its catalogue specification records vented disc construction, 280 mm outer diameter, 22 mm brake disc thickness, and front axle fitting position. Match the reference, diameter, thickness, mounting pattern and vehicle application before fitting; braking components should be installed and checked by a competent person.

Function : Brake Disc
Brake Disc Type : Vented
Outer Diameter [mm] : 280
Brake Disc Thickness [mm] : 22
Height [mm] : 47
Bolt Hole Circle Ø [mm] : 114
Centering Diameter [mm] : 62
Number of Holes : 5
Fitting Position : Front Axle
for article number : NBP1423
  • Vendor NAPA
  • SKU NBD5001
  • Barcode 5056373896158
  • SUZUKI : 5531161M00000
  • APEC : DSK3080
  • APEC : SDK6792
  • BLUE PRINT : ADK84346
  • BORG & BECK : BBD5400
  • Fahren : FBD6792
  • FEBI BILSTEIN : 108472
  • National : NBD2017
