NAPA

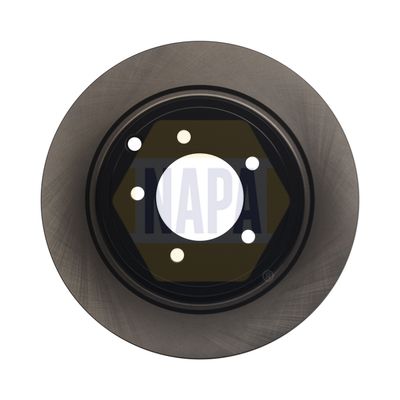

Napa NBD5016 Brake Disc

SKU: NBD5016
Your selected vehicle
In stock
Order by 17:00 for same-day dispatch
£30.43 inc. VAT
Pay in 3 interest-free payments with Klarna

Standard delivery

Free standard delivery is available for eligible UK mainland orders. Charges may apply for express services and non-mainland destinations. See our delivery information for details.

CHRYSLER
SEBRING (JS)
Description Cylinder Capacity Horse Power Year
2.4 VVT 2360 CCM 170 HP 07/2007 - 12/2010
2.0 VVT 1998 CCM 156 HP 07/2007 - 12/2010
2.0 CRD 1968 CCM 140 HP 07/2007 - 12/2010
SEBRING Convertible (JS)
Description Cylinder Capacity Horse Power Year
2.7 VVT 2736 CCM 192 HP 07/2007 - 12/2010
2.0 CRD 1968 CCM 140 HP 07/2007 - 12/2010
2.7 2736 CCM 186 HP 07/2007 - 12/2010
DODGE
AVENGER
Description Cylinder Capacity Horse Power Year
2.0 1998 CCM 156 HP 06/2007 - 12/2011
2.0 CRD 1968 CCM 140 HP 06/2007 - 12/2011
2.4 2360 CCM 170 HP 06/2007 - 12/2014
2.4 2360 CCM 175 HP 06/2007 - 12/2014
CALIBER
Description Cylinder Capacity Horse Power Year
1.8 1798 CCM 150 HP 06/2006 - 10/2010
2.0 1998 CCM 156 HP From 06/2006
2.0 CRD 1968 CCM 140 HP From 06/2006
2.0 CRD 1968 CCM 136 HP 06/2006 - 11/2011
2.0 CRD 1968 CCM 120 HP 06/2006 - 11/2011
MITSUBISHI
ASX (GA_W_)
Description Cylinder Capacity Horse Power Year
1.8 DI-D (GA6W) 1798 CCM 116 HP From 06/2010
1.8 (GA3W) 1798 CCM 139 HP From 02/2010
1.8 DI-D 4WD (GA6W) 1798 CCM 116 HP From 06/2010
2.0 MIVEC (GA2W) 1998 CCM 150 HP From 06/2010
2.0 MIVEC 4WD 1998 CCM 150 HP From 06/2010
1.6 MIVEC (GA1W) 1590 CCM 116 HP From 05/2010
1.6 MIVEC (GA1W) 1590 CCM 117 HP From 06/2010
1.8 DI-D (GA6W) 1798 CCM 150 HP From 06/2010
1.8 DI-D 4WD (GA6W) 1798 CCM 150 HP From 06/2010
ASX Van (GA_W_)
Description Cylinder Capacity Horse Power Year
1.8 DI-D 4WD 1798 CCM 150 HP From 06/2010
OUTLANDER II (CW_W)
Description Cylinder Capacity Horse Power Year
2.4 Flex 4WD 2360 CCM 170 HP 09/2007 - 11/2012
2.4 4WD (CW5W) 2360 CCM 170 HP 09/2007 - 11/2012
2.4 (CW5W) 2360 CCM 170 HP 11/2006 - 11/2012
OUTLANDER II Van (CW_W)
Description Cylinder Capacity Horse Power Year
Di-D 4WD (CW1W) 2268 CCM 177 HP 09/2010 - 12/2012
JEEP
COMPASS (MK49)
Description Cylinder Capacity Horse Power Year
2.2 CRD 4x4 2143 CCM 163 HP From 12/2010
2.0 1998 CCM 156 HP From 05/2011
2.2 CRD 2143 CCM 136 HP From 05/2011
2.4 4x4 2360 CCM 170 HP From 09/2006
2.0 CRD 4x4 1968 CCM 140 HP From 09/2006
2.4 2360 CCM 170 HP From 08/2006
2.0 CRD 1968 CCM 140 HP From 08/2006
2.0 CRD 4x4 1968 CCM 120 HP From 02/2007
PATRIOT (MK74)
Description Cylinder Capacity Horse Power Year
2.2 CRD 4x4 2143 CCM 163 HP 01/2011 - 12/2017
2.4 4x4 2360 CCM 170 HP 01/2008 - 12/2017
2.0 CRD 4x4 1968 CCM 140 HP 02/2007 - 12/2017

The Napa NBD5016 Brake Disc is a replacement braking component that provides the rotating friction surface acted on by the pads or shoes. Its catalogue specification records solid disc construction, 302 mm outer diameter, 10 mm brake disc thickness, and rear axle fitting position. Match the reference, diameter, thickness, mounting pattern and vehicle application before fitting; braking components should be installed and checked by a competent person.

Function : Brake Disc
Brake Disc Type : solid
Outer Diameter [mm] : 302
Brake Disc Thickness [mm] : 10
Height [mm] : 60
Bolt Hole Circle Ø [mm] : 114
Centering Diameter [mm] : 80
Number of Holes : 5
Test Mark : 90R-02C01275/30201
Fitting Position : Rear Axle
for article number : NBP1191
  • Vendor NAPA
  • SKU NBD5016
  • Barcode 5056373891931
  • DODGE : 104743999AA
  • LANCIA : K04743999AA
  • MITSUBISHI : 4615A121 4615A193
  • PEUGEOT : 1606292080 1611667880
  • APEC : DSK2639
  • APEC : SDK6573
  • BLUE PRINT : ADC443125
  • BLUE PRINT : ADP154333
  • BORG & BECK : BBD4820
  • DELPHI : BG4169
  • Fahren : FBD6573
  • FEBI BILSTEIN : 108491
  • FEBI BILSTEIN : 108528
  • FEBI BILSTEIN : 44056
  • National : NBD1609
