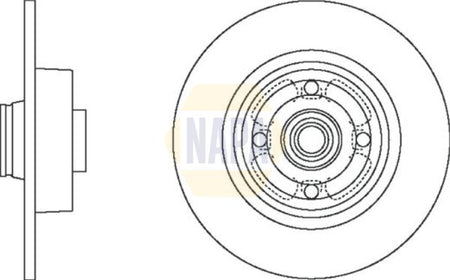

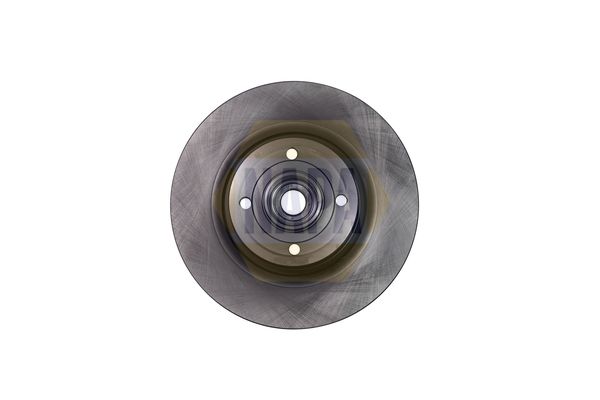

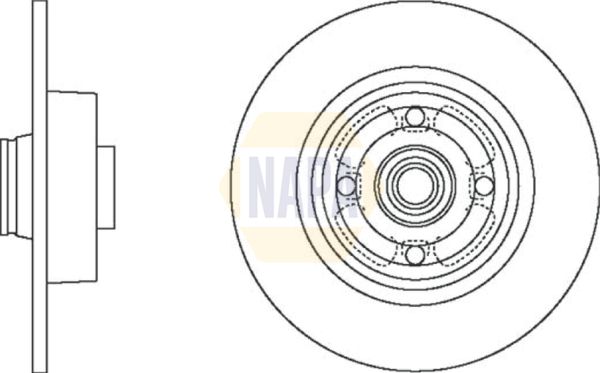

Napa NBD5033 Brake Disc
Your selected vehicle
Regular price
£80.98
inc. VAT
Pay in 3 interest-free payments with Klarna
Standard delivery
Free standard delivery is available for eligible UK mainland orders. Charges may apply for express services and non-mainland destinations. See our delivery information for details.
The Napa NBD5033 Brake Disc is a replacement braking component that provides the rotating friction surface acted on by the pads or shoes. Its catalogue specification records solid disc construction, 270 mm outer diameter, 10 mm brake disc thickness, and rear axle fitting position. Match the reference, diameter, thickness, mounting pattern and vehicle application before fitting; braking components should be installed and checked by a competent person.
Function :
Brake Disc
Brake Disc Type :
solid
Outer Diameter [mm] :
270
Brake Disc Thickness [mm] :
10
Supplementary Article/Supplementary Info 2 :
with ABS sensor ring
Supplementary Article/Supplementary Info 2 :
with wheel bearing
Height [mm] :
81
Stub Axle Diameter [mm] :
25
Bolt Hole Circle Ø [mm] :
100
Centering Diameter [mm] :
55
Number of Holes :
4
Fitting Position :
Rear Axle
for article number :
NBP1512
for article number :
NBP1530
- Vendor NAPA
- SKU NBD5033
- RENAULT : 432004943R 7701207898 8200317195 8660001812 8671018107
- APEC : DSK2442
- APEC : SDK6470
- Fahren : FBD6470
- National : NBD1643
