Napa NBD5107 Brake Disc

SKU: NBD5107

Your selected vehicle

In stock

Order by 17:00 for same-day dispatch

£55.51 inc. VAT

Pay in 3 interest-free payments with Klarna

Standard delivery

Free standard delivery is available for eligible UK mainland orders. Charges may apply for express services and non-mainland destinations. See our delivery information for details.

MERCEDES-BENZ

A-CLASS (W176)

Description	Cylinder Capacity	Horse Power	Year
A 180 (176.042)	1595 CCM	122 HP	09/2012 - 05/2018
A 200 (176.043)	1595 CCM	156 HP	06/2012 - 05/2018
A 180 CDI / d (176.012)	1461 CCM	109 HP	06/2012 - 05/2018
A 180 CDI (176.000)	1796 CCM	109 HP	06/2012 - 10/2014
A 200 CDI (176.001)	1796 CCM	136 HP	06/2012 - 10/2014
A 220 CDI (176.003)	2143 CCM	170 HP	09/2012 - 05/2018
A 160 CDI / d (176.011)	1461 CCM	90 HP	06/2013 - 05/2018
A 200 CDI / d (176.008)	2143 CCM	136 HP	02/2014 - 05/2018
A 200 CDI / d 4-matic (176.002)	2143 CCM	136 HP	02/2014 - 05/2018
A 220 CDI (176.003)	2143 CCM	163 HP	01/2014 - 05/2018
A 220 4-matic (176.047)	1991 CCM	184 HP	05/2014 - 05/2018

B-CLASS Sports Tourer (W246, W242)

Description	Cylinder Capacity	Horse Power	Year
B 180 (246.242)	1595 CCM	122 HP	11/2011 - 12/2018
B 200 (246.243)	1595 CCM	156 HP	11/2011 - 12/2018
B 180 CDI (246.200)	1796 CCM	109 HP	11/2011 - 08/2014
B 200 CDI (246.201)	1796 CCM	136 HP	11/2011 - 08/2014
B 200 Natural Gas Drive / B 200 c (242.848)	1991 CCM	156 HP	11/2012 - 12/2017
B 160 CDI / d (246.211)	1461 CCM	90 HP	05/2013 - 12/2018
B 180 CDI / d (246.212)	1461 CCM	109 HP	02/2013 - 12/2018
B 200 CDI / d (246.208)	2143 CCM	136 HP	08/2014 - 12/2018

CLA Coupe (C117)

Description	Cylinder Capacity	Horse Power	Year
CLA 180 CDI / d (117.312)	1461 CCM	109 HP	10/2013 - 05/2018
CLA 180 (117.342)	1595 CCM	122 HP	01/2013 - 03/2019
CLA 200 (117.343)	1595 CCM	156 HP	01/2013 - 03/2019
CLA 220 CDI / d (117.303)	2143 CCM	170 HP	01/2013 - 03/2019
CLA 200 CDI (117.301)	1796 CCM	136 HP	06/2013 - 08/2014
CLA 200 CDI / d 4-matic (117.302)	2143 CCM	136 HP	07/2014 - 03/2019
CLA 200 CDI / d (117.308)	2143 CCM	136 HP	07/2014 - 03/2019
CLA 220 CDI / d (117.303)	2143 CCM	177 HP	09/2014 - 03/2019
CLA 220 CDI / d 4-matic (117.305)	2143 CCM	177 HP	09/2014 - 03/2019

CLA Shooting Brake (X117)

Description	Cylinder Capacity	Horse Power	Year
CLA 180 (117.942)	1595 CCM	122 HP	01/2015 - 03/2019
CLA 200 (117.943)	1595 CCM	156 HP	01/2015 - 03/2019
CLA 200 CDI / d (117.908)	2143 CCM	136 HP	01/2015 - 03/2019
CLA 200 CDI / d 4-matic (117.902)	2143 CCM	136 HP	01/2015 - 03/2019
CLA 180 d (117.912)	1461 CCM	109 HP	07/2015 - 05/2018

GLA-CLASS (X156)

Description	Cylinder Capacity	Horse Power	Year
GLA 200 (156.943)	1595 CCM	156 HP	12/2013 - 12/2019
GLA 200 CDI / d (156.908)	2143 CCM	136 HP	12/2013 - 12/2019
GLA 200 CDI 4-matic (156.902)	2143 CCM	136 HP	12/2013 - 05/2019
GLA 180 CDI / d (156.912)	1461 CCM	109 HP	07/2014 - 05/2018

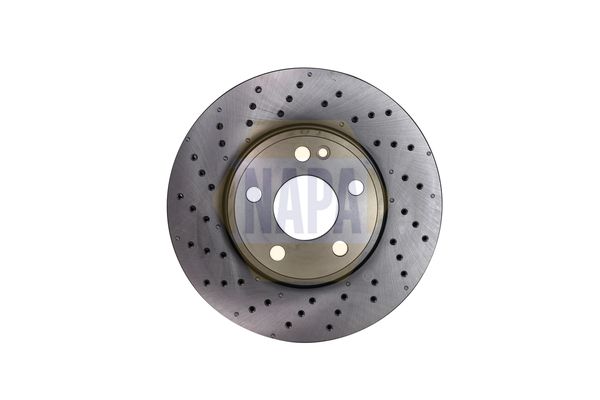

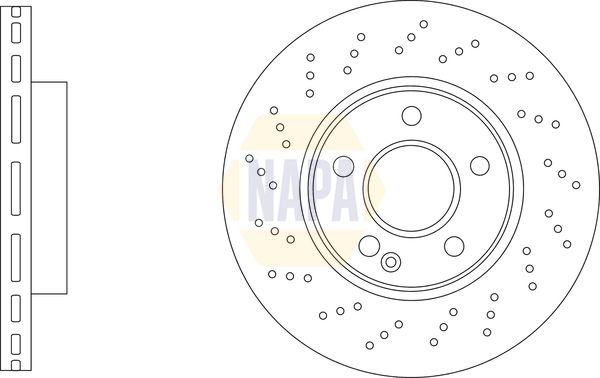

The Napa NBD5107 Brake Disc is a replacement braking component that provides the rotating friction surface acted on by the pads or shoes. Its catalogue specification records perforated/vented disc construction, 295 mm outer diameter, 28 mm brake disc thickness, and front axle fitting position. Match the reference, diameter, thickness, mounting pattern and vehicle application before fitting; braking components should be installed and checked by a competent person.

Function : Brake Disc

Brake Disc Type : perforated/vented

Outer Diameter [mm] : 295

Brake Disc Thickness [mm] : 28

Height [mm] : 51

Bolt Hole Circle Ø [mm] : 112

Centering Diameter [mm] : 67

Number of Holes : 5

Fitting Position : Front Axle

Vehicle Equipment : for vehicles with AMG Sports Package

for article number : NBP1337
