NAPA

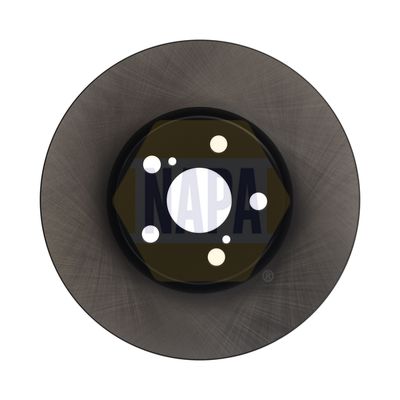

Napa NBD5120 Brake Disc

SKU: NBD5120
Your selected vehicle
Only 5 left
Low inventory - Hurry! — Order by 17:00 for same-day dispatch
£41.86 inc. VAT
Pay in 3 interest-free payments with Klarna

Standard delivery

Free standard delivery is available for eligible UK mainland orders. Charges may apply for express services and non-mainland destinations. See our delivery information for details.

TOYOTA
URBAN CRUISER (_P1_)
Description Cylinder Capacity Horse Power Year
1.33 (NSP110_, NSP110R) 1329 CCM 99 HP 01/2009 - 03/2016
1.33 (NSP110_, NSP110) 1329 CCM 101 HP 04/2009 - 03/2016
1.4 D-4D 4WD (NLP115_, NLP115R) 1364 CCM 90 HP 01/2009 - 04/2014
VERSO S (_P12_)
Description Cylinder Capacity Horse Power Year
1.33 (NSP120_) 1329 CCM 99 HP 11/2010 - 10/2016
1.4 D4-D (NLP121_, NLP121R) 1364 CCM 90 HP 11/2010 - 10/2016

The Napa NBD5120 Brake Disc is a replacement braking component that provides the rotating friction surface acted on by the pads or shoes. Its catalogue specification records vented disc construction, 275 mm outer diameter, 22 mm brake disc thickness, and front axle fitting position. Match the reference, diameter, thickness, mounting pattern and vehicle application before fitting; braking components should be installed and checked by a competent person.

Function : Brake Disc
Brake Disc Type : Vented
Outer Diameter [mm] : 275
Brake Disc Thickness [mm] : 22
Height [mm] : 46
Bolt Hole Circle Ø [mm] : 100
Centering Diameter [mm] : 55
Number of Holes : 5
Fitting Position : Front Axle
for article number : NBP1166
  • Vendor NAPA
  • SKU NBD5120
  • Barcode 5056373892372
  • TOYOTA : 4351212710
  • APEC : DSK2789
  • BLUE PRINT : ADT343220
  • DELPHI : BG4277
  • FEBI BILSTEIN : 108515
  • National : NBD1725
  • SKF : VKBD 80423 V2
