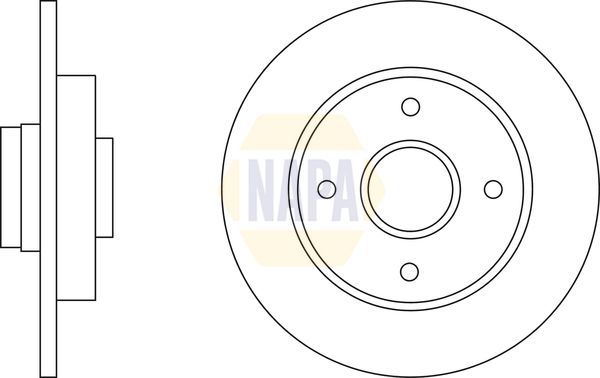

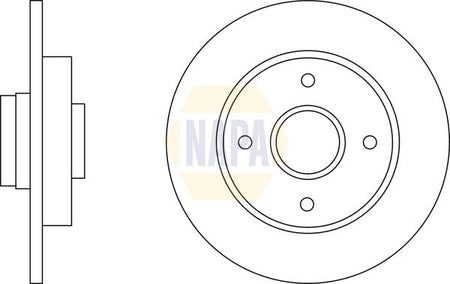

Napa NBD5180 Brake Disc - 1
Napa NBD5180 Brake Disc - 2
Napa NBD5180 Brake Disc - 3
Napa NBD5180 Brake Disc - 1
Napa NBD5180 Brake Disc - 2
Napa NBD5180 Brake Disc - 3
NAPA

Napa NBD5180 Brake Disc

SKU: NBD5180
Your selected vehicle
In stock
Order by 17:00 for same-day dispatch
£73.95 inc. VAT
Pay in 3 interest-free payments with Klarna

Standard delivery

Free standard delivery is available for eligible UK mainland orders. Charges may apply for express services and non-mainland destinations. See our delivery information for details.

CITROËN
C4 II (NC_)
Description Cylinder Capacity Horse Power Year
1.6 VTi 120 (NC5FS0, NC5FS9) 1598 CCM 120 HP 11/2009 - 12/2016
1.4 VTi 95 (NC8FP0) 1397 CCM 95 HP 11/2009 - 11/2015
1.6 HDi 90 1560 CCM 92 HP From 11/2009
1.6 HDi 110 1560 CCM 112 HP From 11/2009
1.6 VTi 120 LPG (NC5FS0) 1598 CCM 120 HP From 09/2011
1.6 HDi 115 1560 CCM 114 HP From 07/2012
1.6 BlueHDi 120 1560 CCM 120 HP 02/2015 - 05/2018
1.6 BlueHDi 100 1560 CCM 99 HP 07/2014 - 05/2018
1.2 THP 110 (NCHNZ6, NCHNV6) 1199 CCM 110 HP 02/2015 - 12/2017
C4 II Hatchback Van (NC_)
Description Cylinder Capacity Horse Power Year
1.6 HDi 1560 CCM 92 HP From 06/2010
1.6 HDi 1560 CCM 111 HP From 11/2009
C4 II Saloon (NC_)
Description Cylinder Capacity Horse Power Year
1.6 1598 CCM 120 HP From 01/2013
C4 CACTUS Van (0B_, 0P_)
Description Cylinder Capacity Horse Power Year
PureTech 130 1199 CCM 131 HP From 05/2019
DS4 (NX_)
Description Cylinder Capacity Horse Power Year
1.6 VTi 120 1598 CCM 120 HP 04/2011 - 07/2015
1.6 HDi 110 1560 CCM 112 HP 04/2011 - 07/2015
1.6 HDi 115 1560 CCM 114 HP 08/2012 - 07/2015
1.6 BlueHDi 120 1560 CCM 120 HP 07/2014 - 07/2015
PEUGEOT
308 I (4A_, 4C_)
Description Cylinder Capacity Horse Power Year
1.6 BioFlex 1587 CCM 109 HP 04/2008 - 10/2014
1.4 16V 1397 CCM 95 HP 09/2007 - 10/2014
1.6 16V 1598 CCM 120 HP 09/2007 - 10/2014
1.6 16V 1598 CCM 150 HP 09/2007 - 10/2014
1.6 HDi 1560 CCM 90 HP 09/2007 - 10/2014
1.6 HDi 1560 CCM 109 HP 09/2007 - 10/2014
2.0 HDi 1997 CCM 136 HP 09/2007 - 10/2014
1.6 16V 1598 CCM 174 HP 03/2008 - 10/2014
1.6 16V 1598 CCM 140 HP 09/2007 - 10/2014
1.4 16V 1397 CCM 98 HP 12/2009 - 10/2014
1.6 THP 16V 1598 CCM 156 HP 10/2009 - 10/2014
1.6 HDi 1560 CCM 92 HP 11/2009 - 10/2014
1.6 HDi 1560 CCM 112 HP 12/2009 - 10/2014
2.0 HDi 1997 CCM 140 HP 07/2010 - 12/2012
308 SW I (4E_, 4H_)
Description Cylinder Capacity Horse Power Year
1.6 HDi 1560 CCM 92 HP 11/2009 - 10/2014
1.4 16V 1397 CCM 95 HP 09/2007 - 10/2014
1.6 16V 1598 CCM 120 HP 09/2007 - 10/2014
1.6 HDi 1560 CCM 90 HP 09/2007 - 10/2014
1.6 HDi 1560 CCM 109 HP 09/2007 - 10/2014
1.4 16V 1397 CCM 98 HP 12/2009 - 10/2014
1.6 HDi 1560 CCM 112 HP 12/2009 - 10/2014
308 CC (4B_)
Description Cylinder Capacity Horse Power Year
1.6 16V 1598 CCM 150 HP 06/2009 - 12/2014
2.0 HDi 1997 CCM 140 HP 04/2009 - 12/2012
1.6 16V 1598 CCM 120 HP 06/2009 - 12/2014
1.6 HDi 1560 CCM 112 HP 06/2009 - 12/2014
1.6 16V 1598 CCM 156 HP 06/2009 - 12/2014
1.6 16V 1598 CCM 140 HP 06/2009 - 12/2014
2.0 HDi (4BRHRH, 4BRHRJ) 1997 CCM 136 HP 04/2009 - 12/2014
2.0 HDi 1997 CCM 163 HP 06/2009 - 12/2014
1.6 HDi 1560 CCM 114 HP 03/2013 - 12/2014
2.0 CVVT 1997 CCM 140 HP 07/2009 - 12/2014
1.6 HDi 1560 CCM 111 HP 02/2009 - 05/2012
DS
DS 4 / DS 4 CROSSBACK (NX_)
Description Cylinder Capacity Horse Power Year
1.6 BlueHDi 100 1560 CCM 99 HP 04/2016 - 12/2018

The Napa NBD5180 Brake Disc is a replacement braking component that provides the rotating friction surface acted on by the pads or shoes. Its catalogue specification records solid disc construction, 249 mm outer diameter, 9 mm brake disc thickness, and rear axle fitting position. Match the reference, diameter, thickness, mounting pattern and vehicle application before fitting; braking components should be installed and checked by a competent person.

Function : Brake Disc
Brake Disc Type : solid
Outer Diameter [mm] : 249
Brake Disc Thickness [mm] : 9
Supplementary Article/Supplementary Info 2 : with ABS sensor ring
Supplementary Article/Supplementary Info 2 : with wheel bearing
Height [mm] : 73
Stub Axle Diameter [mm] : 30
Bolt Hole Circle Ø [mm] : 108
Centering Diameter [mm] : 56
Number of Holes : 4
Test Mark : 90R-02C0533/0335
Fitting Position : Rear Axle
for article number : NBP1712
  • Vendor NAPA
  • SKU NBD5180
  • Barcode 5056373890781
  • CITROËN : 1609249980 1619238780
  • PEUGEOT : 1609249980 1619238780 424965 424966
  • APEC : DSK2608
  • APEC : SDK6555
  • BLUE PRINT : ADP154351
  • Fahren : FBD6555
  • FEBI BILSTEIN : 32783
  • National : NBD1623
