Napa NBD5254 Brake Disc

SKU: NBD5254
Your selected vehicle
In stock
Order by 17:00 for same-day dispatch
£55.95 inc. VAT
Pay in 3 interest-free payments with Klarna

Standard delivery

Free standard delivery is available for eligible UK mainland orders. Charges may apply for express services and non-mainland destinations. See our delivery information for details.

BMW
X3 (F25)
Description Cylinder Capacity Horse Power Year
xDrive 28 i 2996 CCM 258 HP 01/2011 - 10/2012
xDrive 30 d 2993 CCM 258 HP 04/2011 - 08/2017
xDrive 35 d 2993 CCM 313 HP 10/2011 - 08/2017
xDrive 20 i 1997 CCM 184 HP 10/2011 - 08/2017
xDrive 35 i 2979 CCM 306 HP 09/2010 - 08/2017
xDrive 20 d 1995 CCM 184 HP 09/2010 - 03/2014
xDrive 28 i 1997 CCM 245 HP 04/2012 - 08/2017
sDrive 18 d 1995 CCM 136 HP 10/2012 - 03/2014
sDrive 18 d 1995 CCM 143 HP 10/2012 - 03/2014
xDrive 20 d 1995 CCM 163 HP 09/2010 - 08/2017
sDrive 18 d 1995 CCM 150 HP 04/2014 - 08/2017
xDrive 20 d 1995 CCM 190 HP 04/2014 - 08/2017
sDrive 20 i 1997 CCM 184 HP 04/2014 - 08/2017
sDrive 20 i 1592 CCM 170 HP 04/2014 - 08/2017
xDrive 30 d 2993 CCM 211 HP 04/2011 - 08/2017
X4 (F26)
Description Cylinder Capacity Horse Power Year
xDrive 20 i 1997 CCM 184 HP 04/2014 - 03/2018
xDrive 28 i 1997 CCM 245 HP 04/2014 - 03/2018
xDrive 35 i 2979 CCM 306 HP 04/2014 - 03/2018
xDrive 20 d 1995 CCM 190 HP 04/2014 - 03/2018
xDrive 30 d 2993 CCM 258 HP 04/2014 - 03/2018
xDrive 35 d 2993 CCM 313 HP 04/2014 - 03/2018
xDrive 20 d 1995 CCM 163 HP 04/2014 - 03/2018
xDrive 30 d 2993 CCM 286 HP 04/2014 - 03/2018
xDrive 30 d 2993 CCM 249 HP 04/2015 - 03/2018
xDrive 30 d 2993 CCM 277 HP 04/2014 - 03/2018

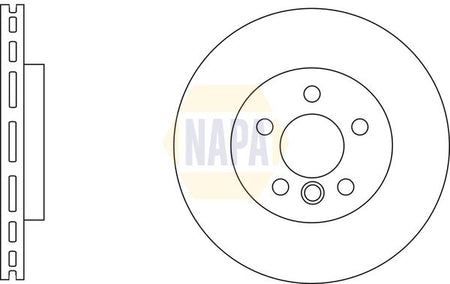

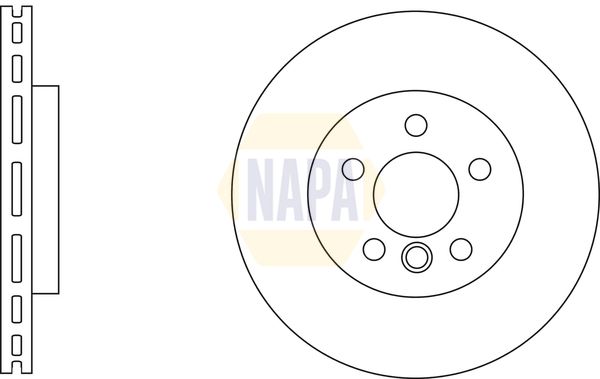

The Napa NBD5254 Brake Disc is a replacement braking component that provides the rotating friction surface acted on by the pads or shoes. Its catalogue specification records vented disc construction, 328 mm outer diameter, 28 mm brake disc thickness, and front axle fitting position. Match the reference, diameter, thickness, mounting pattern and vehicle application before fitting; braking components should be installed and checked by a competent person.

Function : Brake Disc
Brake Disc Type : Vented
Outer Diameter [mm] : 328
Brake Disc Thickness [mm] : 28
Height [mm] : 73
Bolt Hole Circle Ø [mm] : 120
Centering Diameter [mm] : 75
Number of Holes : 5
Fitting Position : Front Axle
for article number : NBP1162
  • Vendor NAPA
  • SKU NBD5254
  • Barcode 5056373891436
  • BMW : 34106787490 34106879122
  • APEC : DSK2968
  • APEC : SDK6730
  • BLUE PRINT : ADB114356
  • Fahren : FBD6730
  • FEBI BILSTEIN : 38576
  • National : NBD1827
