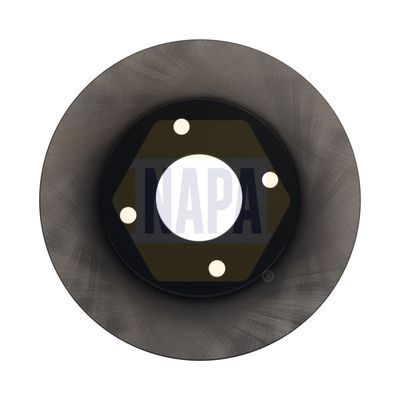

Napa NBD5257 Brake Disc - 1
Napa NBD5257 Brake Disc - 2
Napa NBD5257 Brake Disc - 1
Napa NBD5257 Brake Disc - 2
NAPA

Napa NBD5257 Brake Disc

SKU: NBD5257
Your selected vehicle
Out of stock
Out of Stock
£40.71 inc. VAT
Pay in 3 interest-free payments with Klarna

Standard delivery

Free standard delivery is available for eligible UK mainland orders. Charges may apply for express services and non-mainland destinations. See our delivery information for details.

NISSAN
NV200 Van
Description Cylinder Capacity Horse Power Year
1.5 dCi 90 (M20, M20N, M20M) 1461 CCM 90 HP From 04/2011
1.5 dCi 110 (M20, M20N, M20M) 1461 CCM 110 HP From 04/2011
1.6 16V (VM20, M20N, M20, M20L, M20M) 1598 CCM 110 HP From 02/2010
1.5 dCi 85 (M20, M20N, M20M) 1461 CCM 86 HP From 02/2010
NV200 / EVALIA Bus
Description Cylinder Capacity Horse Power Year
1.5 dCi 90 (M20, M20M) 1461 CCM 90 HP From 04/2011
1.5 dCi 110 (M20, M20M) 1461 CCM 110 HP From 04/2011
1.5 dCi 85 (M20, M20M, M20K, M20KK) 1461 CCM 86 HP From 07/2010

The Napa NBD5257 Brake Disc is a replacement braking component that provides the rotating friction surface acted on by the pads or shoes. Its catalogue specification records vented disc construction, 257 mm outer diameter, 26 mm brake disc thickness, and 68 mm centering diameter. Match the reference, diameter, thickness, mounting pattern and vehicle application before fitting; braking components should be installed and checked by a competent person.

Function : Brake Disc
Brake Disc Type : Vented
Outer Diameter [mm] : 257
Brake Disc Thickness [mm] : 26
Height [mm] : 54
Bolt Hole Circle Ø [mm] : 114
Centering Diameter [mm] : 68
Number of Holes : 4
Test Mark : 90R-02C0301/0153
  • Vendor NAPA
  • SKU NBD5257
  • Barcode 5056373895250
  • NISSAN : 402063LG0A 402063LG0B 40206JX00A D02063LG0B
  • APEC : DSK2886
  • APEC : SDK6684
  • BLUE PRINT : ADN143150
  • BORG & BECK : BBD5214
  • Fahren : FBD6684
  • FEBI BILSTEIN : 108425
  • National : NBD1845
