NAPA

Napa NBD5436 Brake Disc

SKU: NBD5436

Your selected vehicle

In stock

Order by 17:00 for same-day dispatch

£41.35 inc. VAT

Pay in 3 interest-free payments with Klarna

Standard delivery

Free standard delivery is available for eligible UK mainland orders. Charges may apply for express services and non-mainland destinations. See our delivery information for details.

TOYOTA

AURIS (_E15_)

Description	Cylinder Capacity	Horse Power	Year
1.8 (ZRE152)	1798 CCM	136 HP	10/2006 - 09/2012
1.8 Hybrid (ZWE150_, ZWE150R)	1798 CCM	136 HP	09/2010 - 09/2012

AURIS (_E18_)

Description	Cylinder Capacity	Horse Power	Year
1.8 Hybrid (ZWE186_, ZWE186R)	1798 CCM	136 HP	10/2012 - 12/2018

AURIS Estate (_E18_)

Description	Cylinder Capacity	Horse Power	Year
1.8 Hybrid (ZWE186_, ZWE186R, ZWE186H)	1798 CCM	136 HP	07/2013 - 12/2018

MIRAI (JPD1_)

Description	Cylinder Capacity	Horse Power	Year
FCV (JPD10_)		154 HP	12/2014 - 05/2020

PRIUS PLUS (_W4_)

Description	Cylinder Capacity	Horse Power	Year
1.8 Hybrid (ZVW40W, ZVW41W)	1798 CCM	136 HP	From 05/2011

RAV 4 III (_A3_)

Description	Cylinder Capacity	Horse Power	Year
2.0 4WD (ACA30_, ACA30R)	1998 CCM	152 HP	02/2006 - 06/2013
2.2 D 4WD (ALA30_, ALA30R)	2231 CCM	136 HP	02/2006 - 12/2012
2.2 D 4WD (ALA30_, ALA30R)	2231 CCM	177 HP	02/2006 - 06/2013
2.0 (ZSA35_, ZSA35R)	1987 CCM	158 HP	12/2008 - 06/2013
2.0 4WD (ZSA30_, ZSA30R)	1987 CCM	158 HP	12/2008 - 06/2013
2.2 D 4WD (ALA30_, ALA30R)	2231 CCM	150 HP	12/2008 - 06/2013
2.2 D (ALA35_)	2231 CCM	150 HP	12/2008 - 06/2013
2.2 D 4WD (ALA30)	2231 CCM	133 HP	11/2005 - 12/2010

RAV 4 IV (_A4_)

Description	Cylinder Capacity	Horse Power	Year
2.0 D (ALA40_, ALA40R)	1998 CCM	124 HP	12/2012 - 11/2018
2.0 4WD (ZSA44_, ZSA44R)	1987 CCM	151 HP	12/2012 - 10/2018
2.2 D 4WD (ALA49)	2231 CCM	150 HP	12/2012 - 09/2019
2.0 D 4WD (ALA41_)	1998 CCM	124 HP	01/2013 - 11/2018
2.0 4WD (ZSA44_)	1987 CCM	151 HP	04/2015 - 10/2018
2.0 D (WWA42_)	1995 CCM	143 HP	10/2015 - 11/2018

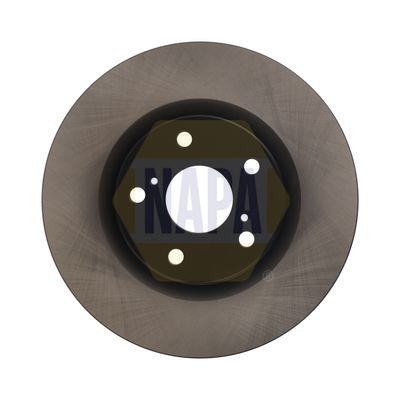

The Napa NBD5436 Brake Disc is a replacement braking component that provides the rotating friction surface acted on by the pads or shoes. Its catalogue specification records vented disc construction, 296 mm outer diameter, 28 mm brake disc thickness, and front axle fitting position. Match the reference, diameter, thickness, mounting pattern and vehicle application before fitting; braking components should be installed and checked by a competent person.

Function : Brake Disc

Brake Disc Type : Vented

Outer Diameter [mm] : 296

Brake Disc Thickness [mm] : 28

Height [mm] : 49

Bolt Hole Circle Ø [mm] : 114

Centering Diameter [mm] : 62

Number of Holes : 5

Test Mark : 90R-02C0301/0060

Fitting Position : Front Axle

for article number : NBP1048

Napa NBD5436 Brake Disc
