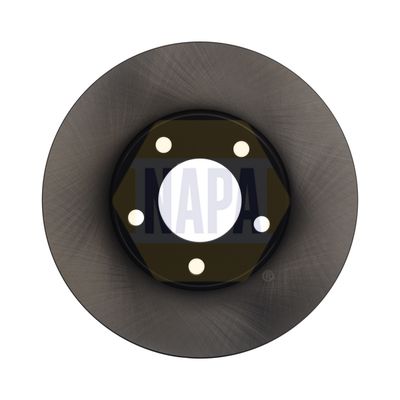

Napa NBD5439 Brake Disc - 1
Napa NBD5439 Brake Disc - 2
Napa NBD5439 Brake Disc - 1
Napa NBD5439 Brake Disc - 2
NAPA

Napa NBD5439 Brake Disc

SKU: NBD5439
Your selected vehicle
In stock
Order by 17:00 for same-day dispatch
£35.80 inc. VAT
Pay in 3 interest-free payments with Klarna

Standard delivery

Free standard delivery is available for eligible UK mainland orders. Charges may apply for express services and non-mainland destinations. See our delivery information for details.

MAZDA
3 Saloon (BK)
Description Cylinder Capacity Horse Power Year
1.6 (BK12) 1598 CCM 105 HP 02/2004 - 06/2009
1.6 DI Turbo (BK12Y) 1560 CCM 109 HP 06/2004 - 06/2009
3 (BK)
Description Cylinder Capacity Horse Power Year
1.6 (BK14) 1598 CCM 105 HP 10/2003 - 06/2009
1.6 DI Turbo 1560 CCM 109 HP 06/2004 - 06/2009
1.3 (BK14) 1349 CCM 84 HP 10/2003 - 06/2009
1.6 MZ-CD 1560 CCM 90 HP 06/2006 - 12/2009
3 (BL)
Description Cylinder Capacity Horse Power Year
1.6 MZR CD (BL14) 1560 CCM 116 HP 09/2010 - 05/2013
1.6 MZR (BL14) 1598 CCM 105 HP 12/2008 - 09/2014
1.6 MZ-CD (BL14) 1560 CCM 109 HP 12/2008 - 05/2013
1.6 MZR 1598 CCM 107 HP 01/2010 - 12/2013
3 Saloon (BL)
Description Cylinder Capacity Horse Power Year
1.6 MZR CD (BL14) 1560 CCM 116 HP 09/2010 - 05/2013
1.6 MZR (BL12) 1598 CCM 105 HP 12/2008 - 09/2014
1.6 MZR CD (BL12) 1560 CCM 109 HP 12/2008 - 05/2013
5 (CR)
Description Cylinder Capacity Horse Power Year
1.8 (CR19) 1798 CCM 116 HP 02/2005 - 05/2010

The Napa NBD5439 Brake Disc is a replacement braking component that provides the rotating friction surface acted on by the pads or shoes. Its catalogue specification records vented disc construction, 278 mm outer diameter, 25 mm brake disc thickness, and front axle fitting position. Match the reference, diameter, thickness, mounting pattern and vehicle application before fitting; braking components should be installed and checked by a competent person.

Function : Brake Disc
Brake Disc Type : Vented
Outer Diameter [mm] : 278
Brake Disc Thickness [mm] : 25
Height [mm] : 48
Bolt Hole Circle Ø [mm] : 114
Centering Diameter [mm] : 72
Number of Holes : 5
Test Mark : 90R-02C0301/0002
Fitting Position : Front Axle
for article number : NBP1443
  • Vendor NAPA
  • SKU NBD5439
  • Barcode 5056373892020
  • MAZDA : BP4Y3325XB BP4Y3325XC BP4Y3325XD C24Y3325XB C24Y3325XC C24Y3325XC9A C24Y3325XD
  • APEC : DSK2200
  • APEC : SDK6290
  • BLUE PRINT : ADM54381
  • BORG & BECK : BBD4447
  • Fahren : FBD6290
  • FEBI BILSTEIN : 32765
  • National : NBD1320
