NAPA

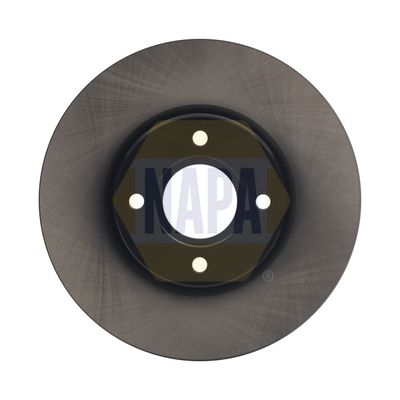

Napa NBD5510 Brake Disc

SKU: NBD5510
Your selected vehicle
In stock
Order by 17:00 for same-day dispatch
£40.80 inc. VAT
Pay in 3 interest-free payments with Klarna

Standard delivery

Free standard delivery is available for eligible UK mainland orders. Charges may apply for express services and non-mainland destinations. See our delivery information for details.

FORD
B-MAX Van (JK)
Description Cylinder Capacity Horse Power Year
1.0 EcoBoost 998 CCM 100 HP From 10/2012
B-MAX (JK)
Description Cylinder Capacity Horse Power Year
1.0 EcoBoost 998 CCM 100 HP From 10/2012
1.0 EcoBoost 998 CCM 120 HP From 10/2012
1.6 Ti 1596 CCM 105 HP From 10/2012
1.6 TDCi 1560 CCM 95 HP From 10/2012
1.4 1388 CCM 90 HP From 10/2012
1.5 TDCi 1499 CCM 75 HP From 10/2012
1.0 EcoBoost 998 CCM 125 HP From 10/2012
1.4 LPG 1388 CCM 90 HP From 08/2013
1.5 TDCi 1499 CCM 95 HP From 04/2015
1.0 EcoBoost 998 CCM 140 HP From 02/2016
FIESTA VI Van
Description Cylinder Capacity Horse Power Year
1.6 ST 1596 CCM 182 HP 03/2013 - 04/2017
FIESTA VII (HJ, HF)
Description Cylinder Capacity Horse Power Year
1.5 ST EcoBoost 1496 CCM 200 HP From 04/2018
TOURNEO COURIER B460 MPV
Description Cylinder Capacity Horse Power Year
1.0 EcoBoost 998 CCM 100 HP 02/2014 - 12/2023
1.5 TDCi 1499 CCM 75 HP 02/2014 - 12/2023
1.5 TDCi 1499 CCM 95 HP 05/2015 - 12/2023
1.5 EcoBlue 1499 CCM 100 HP 04/2018 - 12/2023
TRANSIT COURIER B460 Box Body/MPV
Description Cylinder Capacity Horse Power Year
1.6 TDCi 1560 CCM 95 HP 02/2014 - 12/2023
1.5 TDCi 1499 CCM 75 HP 02/2014 - 12/2023
1.0 EcoBoost 998 CCM 100 HP 02/2014 - 12/2023
1.5 TDCi 1499 CCM 95 HP 05/2015 - 12/2023
1.5 EcoBlue 1499 CCM 100 HP 04/2018 - 12/2023
TRANSIT COURIER B460 MPV
Description Cylinder Capacity Horse Power Year
1.6 TDCi 1560 CCM 95 HP 02/2014 - 12/2023
1.5 TDCi 1499 CCM 75 HP 02/2014 - 12/2023
1.0 EcoBoost 998 CCM 100 HP 02/2014 - 12/2023
1.5 TDCi 1499 CCM 95 HP 05/2015 - 12/2023
1.5 EcoBlue 1499 CCM 100 HP 04/2018 - 12/2023

The Napa NBD5510 Brake Disc is a replacement braking component that provides the rotating friction surface acted on by the pads or shoes. Its catalogue specification records vented disc construction, 278 mm outer diameter, 23 mm brake disc thickness, and front axle fitting position. Match the reference, diameter, thickness, mounting pattern and vehicle application before fitting; braking components should be installed and checked by a competent person.

Function : Brake Disc
Brake Disc Type : Vented
Outer Diameter [mm] : 278
Brake Disc Thickness [mm] : 23
Height [mm] : 44
Bolt Hole Circle Ø [mm] : 108
Centering Diameter [mm] : 64
Number of Holes : 4
Test Mark : 90R-02C0301/0312
Fitting Position : Front Axle
for article number : NBP1452
  • Vendor NAPA
  • SKU NBD5510
  • Barcode 5056373890347
  • FORD : 1751584 1833857 1833867 2272661 AY111125AA EY161125AA EY161125BA
  • APEC : DSK2979
  • APEC : SDK6738
  • BLUE PRINT : ADF124338
  • BORG & BECK : BBD5316
  • Fahren : FBD6738
  • FEBI BILSTEIN : 105848
  • National : NBD1821
  • SKF : VKBD 80134 V2
