Napa NBD5525 Brake Disc

SKU: NBD5525

Your selected vehicle

In stock

Order by 17:00 for same-day dispatch

£42.73 inc. VAT

Pay in 3 interest-free payments with Klarna

Standard delivery

Free standard delivery is available for eligible UK mainland orders. Charges may apply for express services and non-mainland destinations. See our delivery information for details.

BMW

5 (F10)

Description	Cylinder Capacity	Horse Power	Year
525 d xDrive	1995 CCM	211 HP	09/2011 - 10/2016
525 d	1995 CCM	211 HP	09/2011 - 10/2016
528 i	1997 CCM	245 HP	09/2011 - 10/2016
528 i xDrive	1997 CCM	245 HP	09/2011 - 10/2016
525 d	1995 CCM	218 HP	09/2011 - 10/2016
525 d xDrive	1995 CCM	218 HP	09/2011 - 10/2016
530 d	2993 CCM	258 HP	09/2011 - 10/2016
530 d xDrive	2993 CCM	258 HP	03/2011 - 10/2016

5 Touring (F11)

Description	Cylinder Capacity	Horse Power	Year
528 i	1997 CCM	245 HP	09/2011 - 02/2017
528 i xDrive	1997 CCM	245 HP	09/2011 - 02/2017
530 i	2996 CCM	272 HP	07/2011 - 06/2013
525 d	1995 CCM	218 HP	09/2011 - 02/2017
525 d xDrive	1995 CCM	218 HP	09/2011 - 02/2017
530 d	2993 CCM	258 HP	09/2011 - 02/2017
530 d xDrive	2993 CCM	258 HP	03/2011 - 02/2017
528 i	2996 CCM	258 HP	11/2009 - 08/2011

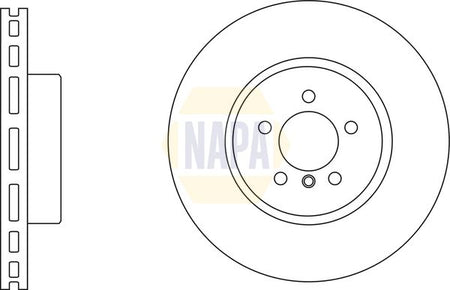

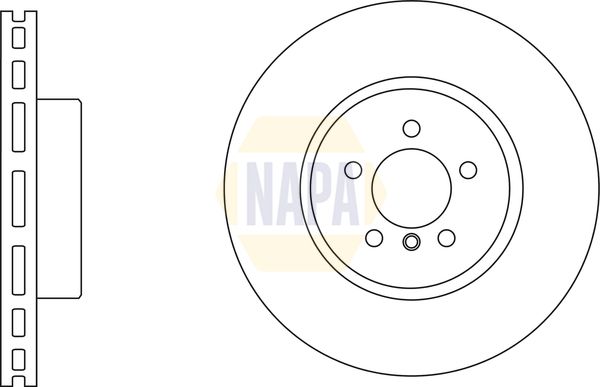

The Napa NBD5525 Brake Disc is a replacement braking component that provides the rotating friction surface acted on by the pads or shoes. Its catalogue specification records vented disc construction, 348 mm outer diameter, 30 mm brake disc thickness, and front axle fitting position. Match the reference, diameter, thickness, mounting pattern and vehicle application before fitting; braking components should be installed and checked by a competent person.

Function : Brake Disc

Brake Disc Type : Vented

Outer Diameter [mm] : 348

Brake Disc Thickness [mm] : 30

Height [mm] : 66

Bolt Hole Circle Ø [mm] : 120

Centering Diameter [mm] : 75

Number of Holes : 5

Test Mark : 90R-02C01514/42065

Fitting Position : Front Axle

for article number : NBP1157

Napa NBD5525 Brake Disc
