Napa NBD5594 Brake Disc

SKU: NBD5594

Your selected vehicle

In stock

Order by 17:00 for same-day dispatch

£31.18 inc. VAT

Pay in 3 interest-free payments with Klarna

Standard delivery

Free standard delivery is available for eligible UK mainland orders. Charges may apply for express services and non-mainland destinations. See our delivery information for details.

MAZDA

5 (CR)

Description	Cylinder Capacity	Horse Power	Year
1.8 (CR19)	1798 CCM	116 HP	02/2005 - 05/2010
2.0 (CREW, CR19)	1999 CCM	146 HP	02/2005 - 05/2010
2.0 CD (CR19)	1998 CCM	110 HP	02/2005 - 05/2010
2.0 CD (CR19)	1998 CCM	143 HP	02/2005 - 05/2010

5 (CW)

Description	Cylinder Capacity	Horse Power	Year
1.6 CD	1560 CCM	116 HP	From 07/2010
2.0 (CWEFW)	1999 CCM	150 HP	From 09/2010
2.0 (CWEFW)	1999 CCM	144 HP	From 06/2010
1.8 MZR	1798 CCM	116 HP	From 09/2010
2.0 (CWFFW)	1998 CCM	151 HP	From 08/2014
2.0	1999 CCM	147 HP	From 01/2011

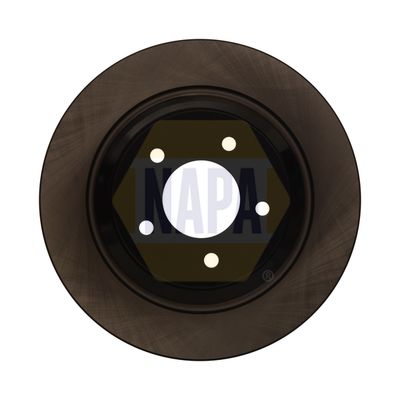

The Napa NBD5594 Brake Disc is a replacement braking component that provides the rotating friction surface acted on by the pads or shoes. Its catalogue specification records solid disc construction, 302 mm outer diameter, 11 mm brake disc thickness, and rear axle fitting position. Match the reference, diameter, thickness, mounting pattern and vehicle application before fitting; braking components should be installed and checked by a competent person.

Function : Brake Disc

Brake Disc Type : solid

Outer Diameter [mm] : 302

Brake Disc Thickness [mm] : 11

Height [mm] : 41

Bolt Hole Circle Ø [mm] : 114

Centering Diameter [mm] : 72

Number of Holes : 5

Test Mark : 90R-02C 01275/31252

Fitting Position : Rear Axle

Napa NBD5594 Brake Disc
