Napa NBD5596 Brake Disc - 1
Napa NBD5596 Brake Disc - 1
NAPA

Napa NBD5596 Brake Disc

SKU: NBD5596
Your selected vehicle
In stock
Order by 17:00 for same-day dispatch
£58.77 inc. VAT
Pay in 3 interest-free payments with Klarna

Standard delivery

Free standard delivery is available for eligible UK mainland orders. Charges may apply for express services and non-mainland destinations. See our delivery information for details.

MERCEDES-BENZ
C-CLASS (W203)
Description Cylinder Capacity Horse Power Year
C 180 (203.035) 1998 CCM 129 HP 10/2000 - 05/2002
C 200 Kompressor (203.045) 1998 CCM 163 HP 05/2000 - 06/2002
C 240 (203.061) 2597 CCM 170 HP 05/2000 - 02/2007
C 320 (203.064) 3199 CCM 218 HP 05/2000 - 02/2007
C 270 CDI (203.016) 2685 CCM 170 HP 12/2000 - 02/2007
C 220 CDI (203.006, 203.008) 2148 CCM 143 HP 05/2000 - 02/2007
C 180 Kompressor (203.046) 1796 CCM 143 HP 05/2002 - 02/2007
C 200 Kompressor (203.042) 1796 CCM 163 HP 05/2002 - 02/2007
C 200 CDI (203.007) 2148 CCM 122 HP 04/2003 - 02/2007
C-CLASS T-Model (S203)
Description Cylinder Capacity Horse Power Year
C 220 CDI (203.208) 2148 CCM 136 HP 08/2006 - 08/2007
C 200 Kompressor (203.245) 1998 CCM 163 HP 03/2001 - 05/2002
C 320 (203.264) 3199 CCM 218 HP 03/2001 - 08/2007
C 220 CDI (203.206, 203.208) 2148 CCM 143 HP 03/2001 - 08/2007
C 270 CDI (203.216) 2685 CCM 170 HP 03/2001 - 08/2007
C 180 (203.235) 1998 CCM 129 HP 03/2001 - 05/2002
C 240 (203.261) 2597 CCM 170 HP 03/2001 - 08/2007
C 180 Kompressor (203.246) 1796 CCM 143 HP 05/2002 - 08/2007
C 200 Kompressor (203.242) 1796 CCM 163 HP 05/2002 - 08/2007
C-CLASS Coupe (CL203)
Description Cylinder Capacity Horse Power Year
C 180 (203.735) 1998 CCM 129 HP 03/2001 - 05/2002
C 200 Kompressor (203.745) 1998 CCM 163 HP 03/2001 - 05/2002
C 220 CDI (203.706) 2148 CCM 143 HP 03/2001 - 01/2004
C 230 Kompressor (203.747) 2295 CCM 197 HP 03/2001 - 05/2002
C 180 Kompressor (203.746) 1796 CCM 143 HP 05/2002 - 05/2008
C 200 Kompressor (203.742) 1796 CCM 163 HP 05/2002 - 05/2008
C 230 Kompressor (203.740) 1796 CCM 192 HP 05/2002 - 05/2008
C 320 (203.764) 3199 CCM 218 HP 09/2002 - 05/2008
C 200 CGI Kompressor (203.743) 1796 CCM 170 HP 03/2003 - 05/2008
C 200 CDI (203.707) 2148 CCM 122 HP 03/2003 - 05/2008
C 220 CDI (203.708) 2148 CCM 150 HP 02/2004 - 05/2008
C 350 (203.756) 3498 CCM 272 HP 01/2005 - 05/2008
C 230 (203.752) 2496 CCM 204 HP 01/2005 - 05/2008
CLK (C209)
Description Cylinder Capacity Horse Power Year
CLK 200 Kompressor (209.342) 1796 CCM 163 HP 09/2002 - 05/2009
CLK 200 CGI (209.343) 1796 CCM 170 HP 07/2003 - 05/2009
CLK 270 CDI (209.316) 2685 CCM 170 HP 10/2002 - 05/2009
CLK 280 (209.354) 2996 CCM 231 HP 01/2005 - 05/2009
CLK 220 CDI (209.308) 2148 CCM 150 HP 01/2005 - 05/2009
CLK 200 Kompressor (209.341) 1796 CCM 184 HP 10/2006 - 05/2009
CLK Convertible (A209)
Description Cylinder Capacity Horse Power Year
CLK 200 Kompressor (209.442) 1796 CCM 163 HP 02/2003 - 03/2010
CLK 200 CGI (209.343) 1796 CCM 170 HP 07/2003 - 03/2010
CLK 280 (209.454) 2996 CCM 231 HP 01/2005 - 03/2010
CLK 200 Kompressor (209.441) 1796 CCM 184 HP 10/2006 - 03/2010
SLK (R171)
Description Cylinder Capacity Horse Power Year
200 Kompressor (171.442) 1796 CCM 163 HP 03/2004 - 02/2011
350 (171.456) 3498 CCM 272 HP 06/2004 - 02/2011
350 (171.458) 3498 CCM 305 HP 01/2008 - 02/2011
200 Kompressor (171.445) 1796 CCM 184 HP 01/2008 - 02/2011
300 (171.454) 2996 CCM 231 HP 04/2009 - 02/2011

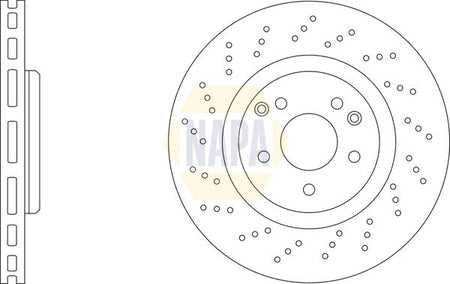

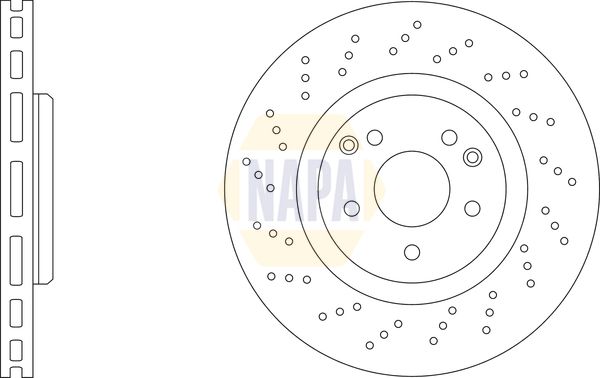

The Napa NBD5596 Brake Disc is a replacement braking component that provides the rotating friction surface acted on by the pads or shoes. Its catalogue specification records perforated/vented disc construction, 330 mm outer diameter, 28 mm brake disc thickness, and front axle fitting position. Match the reference, diameter, thickness, mounting pattern and vehicle application before fitting; braking components should be installed and checked by a competent person.

Function : Brake Disc
Brake Disc Type : perforated/vented
Outer Diameter [mm] : 330
Brake Disc Thickness [mm] : 28
Height [mm] : 46
Bolt Hole Circle Ø [mm] : 112
Centering Diameter [mm] : 67
Number of Holes : 5
Fitting Position : Front Axle
Vehicle Equipment : for vehicles with AMG Sports Package
Vehicle Equipment : for vehicles with sports package
for article number : NBP1501
  • Vendor NAPA
  • SKU NBD5596
  • Barcode 5056373821327
  • MERCEDES-BENZ : 2034211312 A2034211312
  • APEC : DSK2453
  • APEC : SDK6477
  • BLUE PRINT : ADU174335
  • Fahren : FBD6477
  • FEBI BILSTEIN : 26107
  • National : NBD1633
