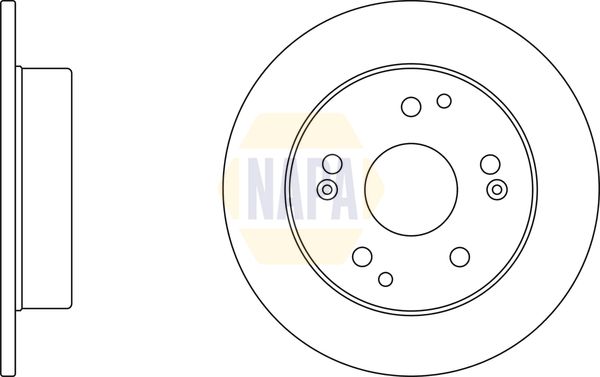

Napa NBD5610 Brake Disc - 1
Napa NBD5610 Brake Disc - 1
NAPA

Napa NBD5610 Brake Disc

5.0/5 60 AutoMotoPart customer reviews Verified reviews across our products & service
SKU: NBD5610

Check product compatibility

Enter your registration or select your vehicle to check this product fits.

Out of stock
Out of Stock
£26.45 inc. VAT
Pay in 3 interest-free payments with Klarna
Free UK mainland standard delivery 14-day returns

Need help choosing the right part? Call 01472 869 066

HONDA
CIVIC VII Hatchback (EU, EP, EV)
Description Cylinder Capacity Horse Power Year
1.6 i (EP2, EU8, EU6) 1590 CCM 110 HP 02/2001 - 09/2005
2.0 Type-R (EP3) 1998 CCM 200 HP 09/2001 - 09/2005
1.7 CTDi (EP4, EU9) 1686 CCM 100 HP 01/2002 - 09/2005
2.0 i Sport (EV1) 1998 CCM 160 HP 09/2001 - 09/2005
INTEGRA Coupe (DC5)
Description Cylinder Capacity Horse Power Year
2.0 (DC5) 1998 CCM 160 HP 02/2002 - 11/2008

The Napa NBD5610 Brake Disc is a replacement braking component that provides the rotating friction surface acted on by the pads or shoes. Its catalogue specification records solid disc construction, 260 mm outer diameter, 10 mm brake disc thickness, and rear axle fitting position. Match the reference, diameter, thickness, mounting pattern and vehicle application before fitting; braking components should be installed and checked by a competent person.

Function : Brake Disc
Brake Disc Type : solid
Outer Diameter [mm] : 260
Brake Disc Thickness [mm] : 10
Height [mm] : 49
Bolt Hole Circle Ø [mm] : 114
Centering Diameter [mm] : 64
Number of Holes : 5
Test Mark : 90R-02C01195/25349
Fitting Position : Rear Axle
Vehicle Equipment : for vehicles with sports package
for article number : NBP1019
  • Vendor NAPA
  • SKU NBD5610
  • Barcode 5056536578594
  • HONDA : 42510S5TE00
  • APEC : DSK2381
  • APEC : SDK6278
  • BLUE PRINT : ADH24372
  • BORG & BECK : BBD4400
  • Fahren : FBD6278
  • FEBI BILSTEIN : 108525
  • National : NBD1029
