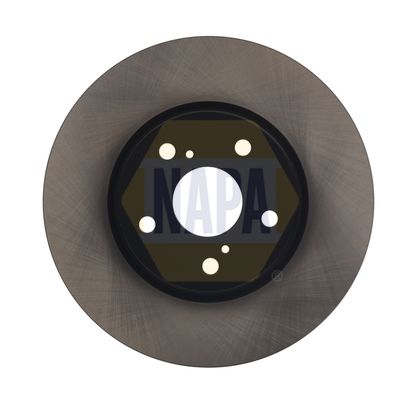

Napa NBD5617 Brake Disc

5.0/5 60 AutoMotoPart customer reviews Verified reviews across our products & service

SKU: NBD5617

Check product compatibility

Enter your registration or select your vehicle to check this product fits.

Only 2 left

Low inventory - Hurry! — Orders placed by 17:00 are usually dispatched the same working day

£38.60 inc. VAT

Pay in 3 interest-free payments with Klarna

Free UK mainland standard delivery 14-day returns

Need help choosing the right part? Call 01472 869 066

TOYOTA

CROWN (CRS_, JZS_, GRS18_, UZS_)

Description	Cylinder Capacity	Horse Power	Year
3.0 (GRS182)	2994 CCM	256 HP	09/2003 - 01/2008
3.0 4WD (GRS183)	2995 CCM	256 HP	12/2003 - 02/2008

LEXUS

IS II (_E2_)

Description	Cylinder Capacity	Horse Power	Year
200d (ALE20_, ALE20R)	2231 CCM	150 HP	07/2010 - 07/2012
250 (GSE20)	2499 CCM	208 HP	08/2005 - 03/2013
220d (ALE20)	2231 CCM	177 HP	08/2005 - 07/2012

IS C (GSE2_)

Description	Cylinder Capacity	Horse Power	Year
250 (GSE20)	2499 CCM	208 HP	04/2009 - 06/2015

IS III (_E3_)

Description	Cylinder Capacity	Horse Power	Year
250 (GSE30_, GSE30R)	2499 CCM	208 HP	04/2013 - 08/2015
300h (AVE30_, AVE30R)	2494 CCM	223 HP	04/2013 - 09/2020

The Napa NBD5617 Brake Disc is a replacement braking component that provides the rotating friction surface acted on by the pads or shoes. Its catalogue specification records vented disc construction, 296 mm outer diameter, 28 mm brake disc thickness, and front axle fitting position. Match the reference, diameter, thickness, mounting pattern and vehicle application before fitting; braking components should be installed and checked by a competent person.

Function : Brake Disc

Brake Disc Type : Vented

Outer Diameter [mm] : 296

Brake Disc Thickness [mm] : 28

Height [mm] : 49

Bolt Hole Circle Ø [mm] : 114

Centering Diameter [mm] : 62

Number of Holes : 5

Test Mark : 90R-02C0301/0056

Fitting Position : Front Axle
