NAPA

Napa NBD5647 Brake Disc

SKU: NBD5647

Your selected vehicle

In stock

Order by 17:00 for same-day dispatch

£44.15 inc. VAT

Pay in 3 interest-free payments with Klarna

Standard delivery

Free standard delivery is available for eligible UK mainland orders. Charges may apply for express services and non-mainland destinations. See our delivery information for details.

SSANGYONG

KORANDO (CK)

Description	Cylinder Capacity	Horse Power	Year
2.0 e-XDi	1998 CCM	175 HP	From 11/2010
2.0 e-XDi 4WD	1998 CCM	175 HP	From 11/2010
2.0 e-XDi	1998 CCM	150 HP	From 02/2012
2.0 e-XDi 4WD	1998 CCM	150 HP	From 02/2012
2.0	1998 CCM	150 HP	From 02/2012
2.2 Xdi	2157 CCM	178 HP	From 07/2015
2.2 Xdi 4WD	2157 CCM	178 HP	From 07/2015

KORANDO (C300)

Description	Cylinder Capacity	Horse Power	Year
1.5 e-XGDi	1497 CCM	163 HP	From 02/2019
1.5 e-XGDi 4WD	1497 CCM	163 HP	From 02/2019
1.6 e-XDi	1597 CCM	136 HP	From 02/2019
1.6 e-XDi 4WD	1597 CCM	136 HP	From 02/2019
E-Motion		190 HP	From 07/2022
E-Motion		207 HP	From 08/2023

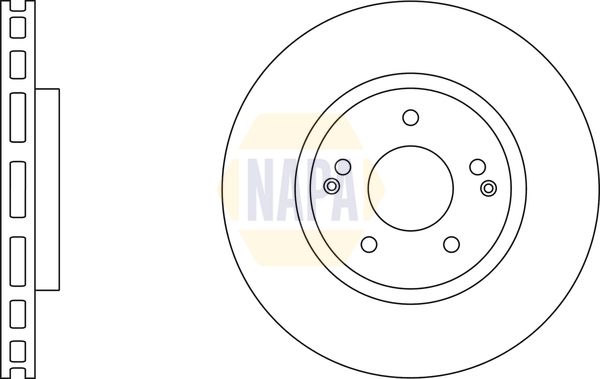

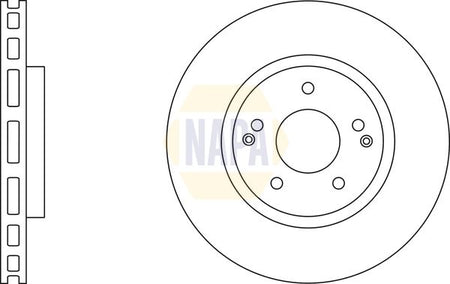

The Napa NBD5647 Brake Disc is a replacement braking component that provides the rotating friction surface acted on by the pads or shoes. Its catalogue specification records vented disc construction, 298 mm outer diameter, 26 mm brake disc thickness, and front axle fitting position. Match the reference, diameter, thickness, mounting pattern and vehicle application before fitting; braking components should be installed and checked by a competent person.

Function : Brake Disc

Brake Disc Type : Vented

Outer Diameter [mm] : 298

Brake Disc Thickness [mm] : 26

Height [mm] : 46

Bolt Hole Circle Ø [mm] : 112

Centering Diameter [mm] : 67

Number of Holes : 5

Test Mark : 90R-02C0301/0285

Fitting Position : Front Axle

for article number : NBP1379

Napa NBD5647 Brake Disc
