Napa NBD5703 Brake Disc - 1
Napa NBD5703 Brake Disc - 2
Napa NBD5703 Brake Disc - 1
Napa NBD5703 Brake Disc - 2
NAPA

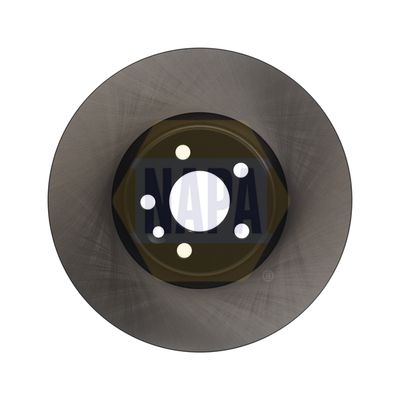

Napa NBD5703 Brake Disc

SKU: NBD5703
Your selected vehicle
In stock
Order by 17:00 for same-day dispatch
£85.11 inc. VAT
Pay in 3 interest-free payments with Klarna

Standard delivery

Free standard delivery is available for eligible UK mainland orders. Charges may apply for express services and non-mainland destinations. See our delivery information for details.

VOLVO
XC60 I SUV (156)
Description Cylinder Capacity Horse Power Year
D5 AWD 2400 CCM 215 HP 04/2011 - 12/2015
T6 AWD 2953 CCM 304 HP 03/2010 - 02/2017
D3 1984 CCM 136 HP 04/2012 - 12/2015
D4 AWD 2400 CCM 181 HP 10/2013 - 12/2015
XC60 I VAN (156)
Description Cylinder Capacity Horse Power Year
D3 1984 CCM 136 HP 09/2013 - 12/2015
D5 AWD 2400 CCM 215 HP 09/2013 - 02/2017
XC60 II (246)
Description Cylinder Capacity Horse Power Year
D3 1969 CCM 150 HP 03/2017 - 12/2021

The Napa NBD5703 Brake Disc is a replacement braking component that provides the rotating friction surface acted on by the pads or shoes. Its catalogue specification records vented disc construction, 324 mm outer diameter, 28 mm brake disc thickness, and front axle fitting position. Match the reference, diameter, thickness, mounting pattern and vehicle application before fitting; braking components should be installed and checked by a competent person.

Function : Brake Disc
Brake Disc Type : Vented
Outer Diameter [mm] : 324
Brake Disc Thickness [mm] : 28
Height [mm] : 52
Bolt Hole Circle Ø [mm] : 108
Centering Diameter [mm] : 64
Number of Holes : 5
Machining : High-carbon
Fitting Position : Front Axle
for article number : NBP1637
  • Vendor NAPA
  • SKU NBD5703
  • Barcode 5056536579522
  • VOLVO : 31423305
  • APEC : DSK3382
  • APEC : SDK6963
  • Fahren : FBD6963
  • National : NBD2032
  • SKF : VKBD 81335 V1
