NAPA

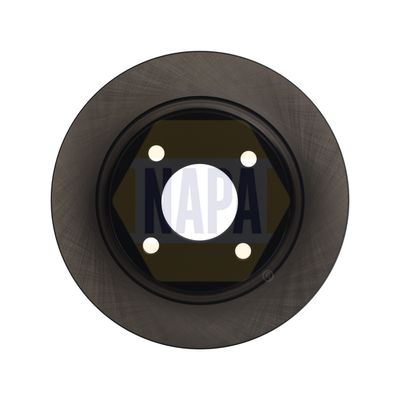

Napa NBD5705 Brake Disc

SKU: NBD5705

Your selected vehicle

In stock

Order by 17:00 for same-day dispatch

£26.75 inc. VAT

Pay in 3 interest-free payments with Klarna

Standard delivery

Free standard delivery is available for eligible UK mainland orders. Charges may apply for express services and non-mainland destinations. See our delivery information for details.

FORD

FIESTA VII (HJ, HF)

Description	Cylinder Capacity	Horse Power	Year
1.0 EcoBoost	998 CCM	101 HP	From 05/2017
1.0 EcoBoost	998 CCM	125 HP	From 05/2017
1.5 TDCi	1499 CCM	120 HP	From 05/2017
1.0 EcoBoost	998 CCM	140 HP	From 06/2017
1.5 ST EcoBoost	1496 CCM	200 HP	From 04/2018
1.0 EcoBoost	999 CCM	95 HP	From 12/2019
1.0 EcoBoost mHEV	999 CCM	155 HP	From 07/2020
1.0 EcoBoost mHEV Active	999 CCM	155 HP	From 01/2021

FIESTA VII Van

Description	Cylinder Capacity	Horse Power	Year
1.0 EcoBoost	998 CCM	125 HP	From 09/2018
1.5 TDCi	1499 CCM	120 HP	From 09/2018
1.5 TDCi	1499 CCM	86 HP	From 04/2019
1.0 EcoBoost	998 CCM	101 HP	From 04/2019
1.0 EcoBoost	998 CCM	140 HP	From 04/2019
1.0 EcoBoost	999 CCM	95 HP	From 12/2019
1.0 EcoBoost mHEV	999 CCM	125 HP	From 06/2020
1.0 EcoBoost Flex	999 CCM	95 HP	From 12/2019

The Napa NBD5705 Brake Disc is a replacement braking component that provides the rotating friction surface acted on by the pads or shoes. Its catalogue specification records solid disc construction, 253 mm outer diameter, 12 mm brake disc thickness, and 64 mm centering diameter. Match the reference, diameter, thickness, mounting pattern and vehicle application before fitting; braking components should be installed and checked by a competent person.

Function : Brake Disc

Brake Disc Type : solid

Outer Diameter [mm] : 253

Brake Disc Thickness [mm] : 12

Height [mm] : 40

Bolt Hole Circle Ø [mm] : 108

Centering Diameter [mm] : 64

Number of Holes : 4

Machining : High-carbon

Test Mark : 90R-02C 01275/36141

Napa NBD5705 Brake Disc
