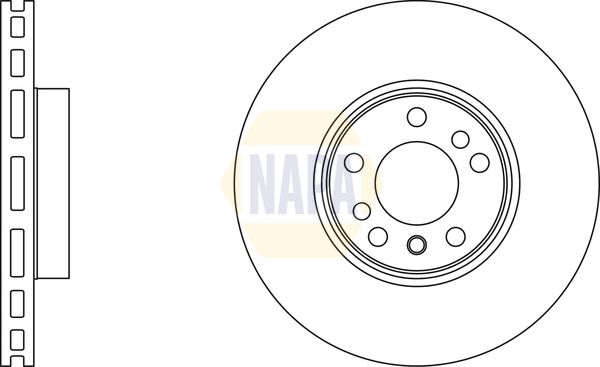

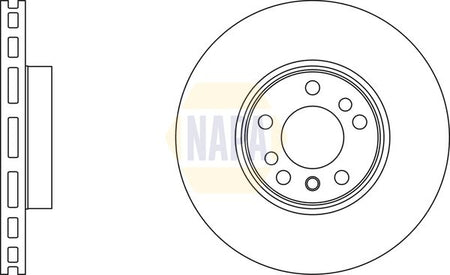

Napa NBD5730 Brake Disc - 1
Napa NBD5730 Brake Disc - 1
NAPA

Napa NBD5730 Brake Disc

SKU: NBD5730
Your selected vehicle
Only 1 left
Low inventory - Hurry! — Order by 17:00 for same-day dispatch
£67.98 inc. VAT
Pay in 3 interest-free payments with Klarna

Standard delivery

Free standard delivery is available for eligible UK mainland orders. Charges may apply for express services and non-mainland destinations. See our delivery information for details.

BMW
X3 (E83)
Description Cylinder Capacity Horse Power Year
3.0 sd 2993 CCM 286 HP 09/2006 - 08/2008
X5 (E53)
Description Cylinder Capacity Horse Power Year
4.4 i 4398 CCM 286 HP 01/2000 - 09/2003
3.0 d 2925 CCM 184 HP 04/2001 - 09/2003
3.0 i 2979 CCM 231 HP 04/2000 - 10/2006
4.4 i 4398 CCM 320 HP 10/2003 - 10/2006
3.0 d 2993 CCM 218 HP 10/2003 - 09/2006
3.0 d 2993 CCM 211 HP 10/2003 - 09/2006

The Napa NBD5730 Brake Disc is a replacement braking component that provides the rotating friction surface acted on by the pads or shoes. Its catalogue specification records vented disc construction, 332 mm outer diameter, 30 mm brake disc thickness, and 75 mm centering diameter. Match the reference, diameter, thickness, mounting pattern and vehicle application before fitting; braking components should be installed and checked by a competent person.

Function : Brake Disc
Brake Disc Type : Vented
Outer Diameter [mm] : 332
Brake Disc Thickness [mm] : 30
Height [mm] : 62
Bolt Hole Circle Ø [mm] : 120
Centering Diameter [mm] : 75
Number of Holes : 5
  • Vendor NAPA
  • SKU NBD5730
  • Barcode 5056536595379
  • BMW : 34116750713 34116756045 34116765457 34116766036 34116794300 34116794304 34116859679
  • APEC : DSK2223
  • APEC : SDK6228
  • BLUE PRINT : ADB114349
  • BLUE PRINT : ADB114357
  • Fahren : FBD6228
  • FEBI BILSTEIN : 21177
  • FEBI BILSTEIN : 43990
  • National : NBD1080
