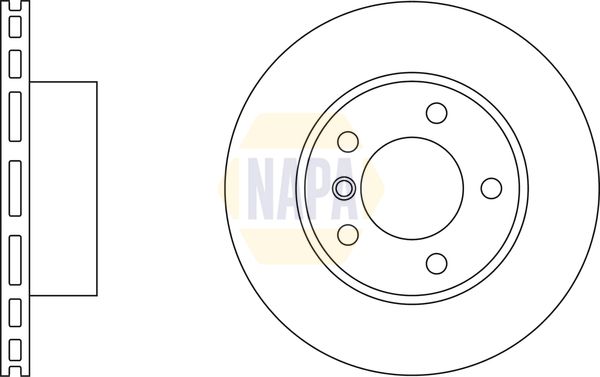

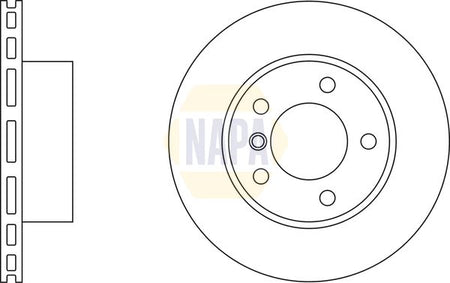

Napa NBD5741 Brake Disc - 1
Napa NBD5741 Brake Disc - 1
NAPA

Napa NBD5741 Brake Disc

SKU: NBD5741
Your selected vehicle
Only 2 left
Low inventory - Hurry! — Order by 17:00 for same-day dispatch
£42.66 inc. VAT
Pay in 3 interest-free payments with Klarna

Standard delivery

Free standard delivery is available for eligible UK mainland orders. Charges may apply for express services and non-mainland destinations. See our delivery information for details.

BMW
1 (E87)
Description Cylinder Capacity Horse Power Year
116 i 1596 CCM 115 HP 06/2004 - 06/2011
116 i 1599 CCM 122 HP 09/2007 - 06/2011
116 i 1995 CCM 122 HP 01/2009 - 06/2011
118 i 1995 CCM 129 HP 07/2004 - 02/2007
116 d 1995 CCM 116 HP 03/2009 - 06/2011
118 d 1995 CCM 122 HP 06/2004 - 02/2007
1 (E81)
Description Cylinder Capacity Horse Power Year
116 i 1596 CCM 115 HP 09/2007 - 12/2011
116 i 1599 CCM 122 HP 03/2007 - 12/2011
116 i 1995 CCM 122 HP 11/2008 - 12/2011
116 d 1995 CCM 116 HP 11/2008 - 12/2011

The Napa NBD5741 Brake Disc is a replacement braking component that provides the rotating friction surface acted on by the pads or shoes. Its catalogue specification records vented disc construction, 284 mm outer diameter, 22 mm brake disc thickness, and 79 mm centering diameter. Match the reference, diameter, thickness, mounting pattern and vehicle application before fitting; braking components should be installed and checked by a competent person.

Function : Brake Disc
Brake Disc Type : Vented
Outer Diameter [mm] : 284
Brake Disc Thickness [mm] : 22
Height [mm] : 73
Bolt Hole Circle Ø [mm] : 120
Centering Diameter [mm] : 79
Number of Holes : 5
  • Vendor NAPA
  • SKU NBD5741
  • Barcode 5056536595485
  • BMW : 34116764629 34116854996
  • APEC : DSK2246
  • APEC : SDK6265
  • BLUE PRINT : ADB114370
  • Fahren : FBD6265
  • FEBI BILSTEIN : 23535
  • National : NBD1302
