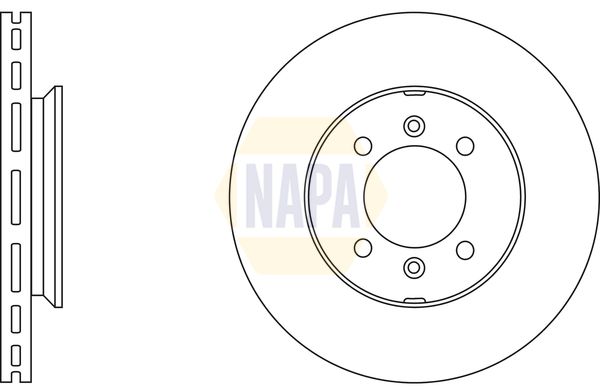

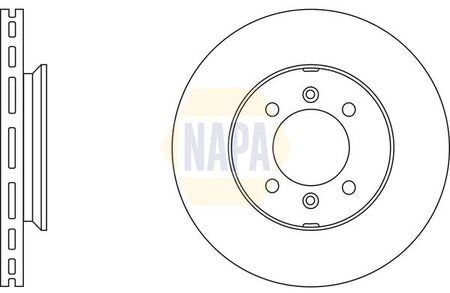

Napa NBD5744 Brake Disc - 1
Napa NBD5744 Brake Disc - 1
NAPA

Napa NBD5744 Brake Disc

SKU: NBD5744
Your selected vehicle
Only 1 left
Low inventory - Hurry! — Order by 17:00 for same-day dispatch
£24.48 inc. VAT
Pay in 3 interest-free payments with Klarna

Standard delivery

Free standard delivery is available for eligible UK mainland orders. Charges may apply for express services and non-mainland destinations. See our delivery information for details.

AUSTIN
MONTEGO (XE)
Description Cylinder Capacity Horse Power Year
1.6 LS, HL 1598 CCM 83 HP 04/1984 - 08/1988
2.0 1994 CCM 101 HP 04/1984 - 08/1988
2.0 Turbo 1994 CCM 150 HP 04/1984 - 08/1988
1.3 1275 CCM 68 HP 10/1984 - 08/1988
2.0 1994 CCM 103 HP 01/1988 - 12/1993
MONTEGO Estate (XE)
Description Cylinder Capacity Horse Power Year
1.6 LS 1598 CCM 83 HP 10/1984 - 08/1988
2.0 HLI 1994 CCM 113 HP 10/1984 - 09/1992
2.0 1994 CCM 101 HP 10/1984 - 08/1991
2.0 D 1994 CCM 82 HP 12/1988 - 09/1992
MG
MGF (RD)
Description Cylinder Capacity Horse Power Year
1.8 i 16V 1796 CCM 120 HP 03/1995 - 03/2002
1.8 i VVC 1796 CCM 146 HP 03/1995 - 03/2002
1.6 1588 CCM 111 HP 02/2000 - 03/2002
MONTEGO
Description Cylinder Capacity Horse Power Year
2.0 EFi 1994 CCM 117 HP 04/1984 - 09/1990
2.0 Turbo 1994 CCM 150 HP 10/1984 - 09/1990
TF
Description Cylinder Capacity Horse Power Year
135 1796 CCM 136 HP 03/2002 - 12/2009
120 1796 CCM 120 HP 03/2002 - 12/2009
115 1588 CCM 116 HP 03/2002 - 12/2009
ROVER
100 / METRO Hatchback (XP)
Description Cylinder Capacity Horse Power Year
114 GTI/GT 16V Cat 1396 CCM 90 HP 03/1990 - 12/1998
114 GTI 16V 1396 CCM 103 HP 08/1991 - 12/1998
114 GTI 16V 1396 CCM 94 HP 03/1990 - 08/1991
MONTEGO Estate (XE)
Description Cylinder Capacity Horse Power Year
2.0 GTI/LXI 1996 CCM 102 HP 12/1990 - 12/1993
2.0 Turbo-D 1996 CCM 82 HP 01/1993 - 12/1993
2.0 GTi 1994 CCM 117 HP 10/1988 - 10/1991
1.6 1598 CCM 83 HP 10/1990 - 09/1992
MONTEGO
Description Cylinder Capacity Horse Power Year
2.0 i Cat 1996 CCM 102 HP 12/1990 - 10/1994
2.0 GTi 1994 CCM 117 HP 02/1985 - 10/1991
2.0 D Turbo 1996 CCM 82 HP 10/1988 - 10/1995
1.6 1598 CCM 83 HP 10/1990 - 09/1992
RELIANT
SCIMITAR SABRE Roadster
Description Cylinder Capacity Horse Power Year
1.4 i 1396 CCM 103 HP 08/1993 - 12/1995
1800 Ti 1809 CCM 135 HP 01/1992 - 08/1994

The Napa NBD5744 Brake Disc is a replacement braking component that provides the rotating friction surface acted on by the pads or shoes. Its catalogue specification records vented disc construction, 240 mm outer diameter, 22 mm brake disc thickness, and 66 mm centering diameter. Match the reference, diameter, thickness, mounting pattern and vehicle application before fitting; braking components should be installed and checked by a competent person.

Function : Brake Disc
Brake Disc Type : Vented
Outer Diameter [mm] : 240
Brake Disc Thickness [mm] : 22
Height [mm] : 43
Bolt Hole Circle Ø [mm] : 95
Centering Diameter [mm] : 66
Number of Holes : 4
Test Mark : 90R-02C0349/0125
  • Vendor NAPA
  • SKU NBD5744
  • Barcode 5056599447196
  • ROVER : FAM8970 GBD90607 GBD90838 NAM7806 NAM7860 NAM8970
  • APEC : DSK150
  • APEC : SDK6168
  • BORG & BECK : BBD4204
  • National : NBD019
