Napa NBD5749 Brake Disc - 1
Napa NBD5749 Brake Disc - 1
NAPA

Napa NBD5749 Brake Disc

SKU: NBD5749
Your selected vehicle
Only 2 left
Low inventory - Hurry! — Order by 17:00 for same-day dispatch
£39.71 inc. VAT
Pay in 3 interest-free payments with Klarna

Standard delivery

Free standard delivery is available for eligible UK mainland orders. Charges may apply for express services and non-mainland destinations. See our delivery information for details.

CHRYSLER
TACUMA Mk II (GS_, NS_)
Description Cylinder Capacity Horse Power Year
3.3 i 3301 CCM 158 HP 01/1995 - 03/2001
2.5 TD 2499 CCM 116 HP 01/1995 - 03/2001
VOYAGER Mk III (RG, RS)
Description Cylinder Capacity Horse Power Year
2.4 2429 CCM 147 HP 02/2000 - 12/2008
3.3 3301 CCM 174 HP 02/2000 - 12/2008
2.5 CRD 2499 CCM 141 HP 02/2000 - 12/2008
2.8 CRD 2777 CCM 150 HP 06/2004 - 12/2008
VOYAGER / GRAND VOYAGER IV (RG)
Description Cylinder Capacity Horse Power Year
2.5 CRD 2499 CCM 143 HP 01/2001 - 02/2008
3.3 3301 CCM 174 HP 02/2000 - 08/2007

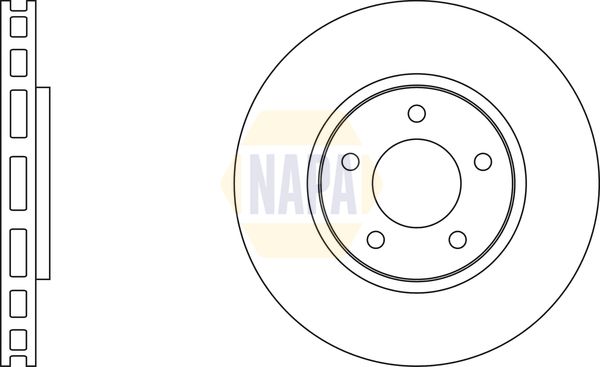

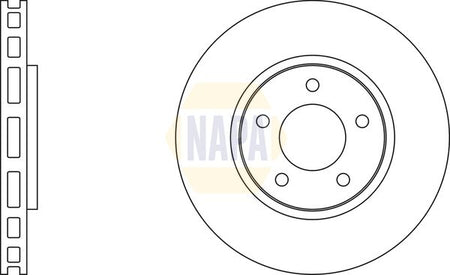

The Napa NBD5749 Brake Disc is a replacement braking component that provides the rotating friction surface acted on by the pads or shoes. Its catalogue specification records vented disc construction, 302 mm outer diameter, 28 mm brake disc thickness, and 73 mm centering diameter. Match the reference, diameter, thickness, mounting pattern and vehicle application before fitting; braking components should be installed and checked by a competent person.

Function : Brake Disc
Brake Disc Type : Vented
Outer Diameter [mm] : 302
Brake Disc Thickness [mm] : 28
Height [mm] : 39
Bolt Hole Circle Ø [mm] : 114
Centering Diameter [mm] : 73
Number of Holes : 5
Test Mark : 90R-02C0361/0265
  • Vendor NAPA
  • SKU NBD5749
  • Barcode 5056599447240
  • CHRYSLER : 4683918 4683918AA 4683918AB
  • JEEP : 4683918 4683918AA 4683918AB
  • APEC : DSK2106
  • APEC : SDK6252
  • BLUE PRINT : ADA104301
  • BORG & BECK : BBD4275
  • FEBI BILSTEIN : 28171
  • National : NBD1154
