Napa NBD5756 Brake Disc

SKU: NBD5756

Your selected vehicle

Only 1 left

Low inventory - Hurry! — Order by 17:00 for same-day dispatch

£54.09 inc. VAT

Pay in 3 interest-free payments with Klarna

Standard delivery

Free standard delivery is available for eligible UK mainland orders. Charges may apply for express services and non-mainland destinations. See our delivery information for details.

TOYOTA

ALPHARD I (_H1_)

Description	Cylinder Capacity	Horse Power	Year
2.4 Hybrid 4WD (ATH10W)	2362 CCM	159 HP	09/2003 - 04/2008
3.0 (MNH10)	2995 CCM	220 HP	04/2003 - 04/2008
3.0 4WD (MNH15W)	2995 CCM	220 HP	04/2003 - 04/2008
2.4 4WD (ANH15W)	2362 CCM	159 HP	09/2003 - 04/2008

CAMRY Saloon (_V3_)

Description	Cylinder Capacity	Horse Power	Year
2.4 (ACV30, ACV36)	2362 CCM	152 HP	11/2001 - 11/2006
3.0 (MCV30_, MCV30R)	2995 CCM	186 HP	08/2001 - 11/2006

HARRIER (_U1_)

Description	Cylinder Capacity	Horse Power	Year
2.2 4WD (SXU15)	2164 CCM	140 HP	05/1997 - 01/2003
2.2 (SXU10)	2164 CCM	140 HP	05/1997 - 02/2003

PREVIA / ESTIMA II (_R3_)

Description	Cylinder Capacity	Horse Power	Year
2.4 (ACR30)	2362 CCM	156 HP	02/2000 - 02/2006
2.0 D-4D (CLR30_, CLR30R)	1995 CCM	116 HP	03/2001 - 01/2006
2.4 (ACR30)	2362 CCM	170 HP	02/2000 - 01/2006

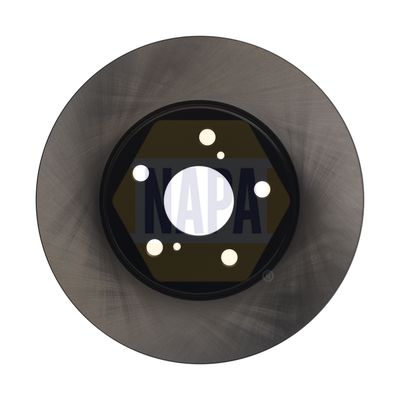

The Napa NBD5756 Brake Disc is a replacement braking component that provides the rotating friction surface acted on by the pads or shoes. Its catalogue specification records vented disc construction, 296 mm outer diameter, 28 mm brake disc thickness, and 62 mm centering diameter. Match the reference, diameter, thickness, mounting pattern and vehicle application before fitting; braking components should be installed and checked by a competent person.

Function : Brake Disc

Brake Disc Type : Vented

Outer Diameter [mm] : 296

Brake Disc Thickness [mm] : 28

Height [mm] : 49

Bolt Hole Circle Ø [mm] : 114

Centering Diameter [mm] : 62

Number of Holes : 5

Test Mark : 90R-02C0301/0064

Napa NBD5756 Brake Disc
