Napa NBD5763 Brake Disc - 1
Napa NBD5763 Brake Disc - 1
NAPA

Napa NBD5763 Brake Disc

SKU: NBD5763
Your selected vehicle
Only 3 left
Low inventory - Hurry! — Order by 17:00 for same-day dispatch
£55.55 inc. VAT
Pay in 3 interest-free payments with Klarna

Standard delivery

Free standard delivery is available for eligible UK mainland orders. Charges may apply for express services and non-mainland destinations. See our delivery information for details.

VW
CALIFORNIA T5 Camper (7EC, 7EF, 7EG, 7HF, 7HC)
Description Cylinder Capacity Horse Power Year
1.9 TDI 1896 CCM 84 HP 05/2007 - 12/2009
MULTIVAN Mk V (7HM, 7HN, 7HF, 7EF, 7EM, 7EN)
Description Cylinder Capacity Horse Power Year
2.5 TDI 2461 CCM 130 HP 04/2003 - 11/2009
2.5 TDI 2461 CCM 174 HP 04/2003 - 11/2009
1.9 TDI 1896 CCM 105 HP 04/2003 - 11/2009
VR6 3.2 3189 CCM 235 HP 02/2004 - 12/2009
2.5 TDI 4motion 2461 CCM 130 HP 07/2004 - 11/2009
2.5 TDI 4motion 2461 CCM 174 HP 07/2004 - 11/2009
1.9 TDI 1896 CCM 102 HP 01/2006 - 11/2009
1.9 TDI 1896 CCM 85 HP 04/2003 - 11/2009
TOUAREG (7LA, 7L6, 7L7)
Description Cylinder Capacity Horse Power Year
2.5 R5 TDI 2461 CCM 174 HP 01/2003 - 05/2010
2.5 R5 TDI 2461 CCM 163 HP 08/2003 - 05/2010
TRANSPORTER Mk V Platform/Chassis (7JD, 7JE, 7JL, 7JY, 7JZ,
Description Cylinder Capacity Horse Power Year
1.9 TDI 1896 CCM 85 HP 04/2003 - 11/2009
1.9 TDI 1896 CCM 105 HP 04/2003 - 11/2009
2.5 TDI 2461 CCM 130 HP 04/2003 - 11/2009
2.5 TDI 2461 CCM 174 HP 04/2003 - 11/2009
VR6 3.2 3189 CCM 235 HP 08/2003 - 11/2009
2.5 TDI 4motion 2461 CCM 130 HP 07/2004 - 11/2009
1.9 TDI 1896 CCM 102 HP 01/2006 - 11/2009
1.9 TDI 1896 CCM 84 HP 01/2006 - 11/2009
2.5 TDI 4motion 2461 CCM 174 HP 04/2004 - 11/2009
TRANSPORTER / CARAVELLE Mk V Bus (7HB, 7HJ, 7EB, 7EJ)
Description Cylinder Capacity Horse Power Year
1.9 TDI 1896 CCM 85 HP 04/2003 - 11/2009
1.9 TDI 1896 CCM 105 HP 04/2003 - 11/2009
2.5 TDI 2461 CCM 130 HP 04/2003 - 11/2009
2.5 TDI 2461 CCM 174 HP 04/2003 - 11/2009
VR6 3.2 3189 CCM 235 HP 02/2004 - 11/2009
2.5 TDI 4motion 2461 CCM 130 HP 07/2004 - 11/2009
2.5 TDI 4motion 2461 CCM 174 HP 07/2004 - 11/2009
1.9 TDI 1896 CCM 102 HP 01/2006 - 11/2009
3.2 V6 4motion 3189 CCM 235 HP 11/2003 - 12/2009
2.5 TDi 2461 CCM 163 HP 11/2003 - 11/2009
1.9 TDI 1896 CCM 84 HP 01/2006 - 11/2009
TRANSPORTER Mk V Van (7HA, 7HH, 7EA, 7EH)
Description Cylinder Capacity Horse Power Year
1.9 TDI 1896 CCM 85 HP 04/2003 - 11/2009
1.9 TDI 1896 CCM 105 HP 04/2003 - 11/2009
2.5 TDI 2461 CCM 130 HP 04/2003 - 11/2009
2.5 TDI 2461 CCM 174 HP 04/2003 - 11/2009
VR6 3.2 3189 CCM 235 HP 02/2004 - 11/2009
2.5 TDI 4motion 2461 CCM 130 HP 07/2004 - 11/2009
2.5 TDI 4motion 2461 CCM 174 HP 07/2004 - 11/2009
1.9 TDI 1896 CCM 102 HP 01/2006 - 11/2009
VR6 3.2 4motion 3189 CCM 235 HP 11/2003 - 11/2009
1.9 TDI 1896 CCM 84 HP 01/2006 - 11/2009

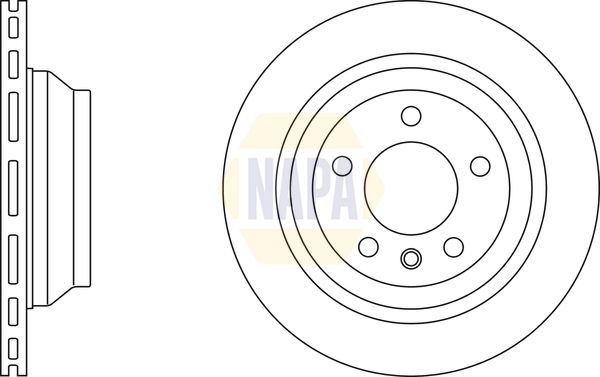

The Napa NBD5763 Brake Disc is a replacement braking component that provides the rotating friction surface acted on by the pads or shoes. Its catalogue specification records vented disc construction, 314 mm outer diameter, 22 mm brake disc thickness, and 76 mm centering diameter. Match the reference, diameter, thickness, mounting pattern and vehicle application before fitting; braking components should be installed and checked by a competent person.

Function : Brake Disc
Brake Disc Type : Vented
Outer Diameter [mm] : 314
Brake Disc Thickness [mm] : 22
Height [mm] : 75
Bolt Hole Circle Ø [mm] : 120
Centering Diameter [mm] : 76
Number of Holes : 5
Test Mark : 90R-02C 01275/31717
  • Vendor NAPA
  • SKU NBD5763
  • Barcode 5056599447387
  • VW : 7L6615601C 7L6615601E 7L6615601G
  • APEC : DSK2400
  • APEC : SDK6455
  • BLUE PRINT : ADV184365
  • BORG & BECK : BBD4388
  • Fahren : FBD6455
  • FEBI BILSTEIN : 28164
  • National : NBD1295
