Napa NBD5806 Brake Disc - 1
Napa NBD5806 Brake Disc - 1
NAPA

Napa NBD5806 Brake Disc

SKU: NBD5806
Your selected vehicle
Only 4 left
Low inventory - Hurry! — Order by 17:00 for same-day dispatch
£100.53 inc. VAT
Pay in 3 interest-free payments with Klarna

Standard delivery

Free standard delivery is available for eligible UK mainland orders. Charges may apply for express services and non-mainland destinations. See our delivery information for details.

JAGUAR
F-TYPE Convertible (X152)
Description Cylinder Capacity Horse Power Year
3.0 SCV6 2995 CCM 340 HP From 10/2012
3.0 SCV6 S 2995 CCM 380 HP From 10/2012
5.0 SCV8 S 5000 CCM 495 HP From 10/2012
3.0 SCV6 S AWD 2995 CCM 380 HP From 12/2014
5.0 SCV8 R 5000 CCM 551 HP From 10/2013
5.0 SCV8 R AWD 5000 CCM 551 HP From 12/2014
5.0 SCV8 SVR / SCV8 P575 R AWD 5000 CCM 575 HP From 12/2015
SCV6 400 SPORT 2995 CCM 400 HP From 11/2016
SCV6 400 SPORT AWD 2995 CCM 400 HP From 11/2016
5.0 SCV8 SVR 5000 CCM 575 HP From 05/2015
5.0 SCV8 P450 5000 CCM 450 HP From 12/2019
5.0 SCV8 P450 AWD 5000 CCM 450 HP From 12/2019
F-TYPE Coupe (X152)
Description Cylinder Capacity Horse Power Year
3.0 SCV6 2995 CCM 340 HP From 10/2013
3.0 SCV6 S 2995 CCM 380 HP From 10/2013
5.0 SCV8 R 5000 CCM 551 HP From 10/2013
3.0 SCV6 S AWD 2995 CCM 380 HP From 12/2014
5.0 SCV8 R AWD 5000 CCM 551 HP From 12/2014
5.0 SCV8 SVR / SCV8 P575 R 5000 CCM 575 HP From 12/2015
3.0 SCV6 400 SPORT 2995 CCM 400 HP From 11/2016
3.0 SCV6 400 SPORT AWD 2995 CCM 400 HP From 11/2016
5.0 SCV8 P450 5000 CCM 450 HP From 12/2019
5.0 SCV8 P450 AWD 5000 CCM 450 HP From 12/2019
XF I (X250)
Description Cylinder Capacity Horse Power Year
5.0 Kompressor 5000 CCM 471 HP 01/2009 - 04/2015
5.0 Kompressor 5000 CCM 510 HP 03/2009 - 04/2015
XF SPORTBRAKE (X250)
Description Cylinder Capacity Horse Power Year
5.0 XFR-S 5000 CCM 550 HP 02/2013 - 04/2014
XJ (X351)
Description Cylinder Capacity Horse Power Year
5.0 SCV8 5000 CCM 471 HP 10/2009 - 12/2019
5.0 SCV8 5000 CCM 550 HP 06/2013 - 12/2019
5.0 SCV8 5000 CCM 510 HP 10/2009 - 12/2019
5.0 SCV8 R575 5000 CCM 575 HP 06/2017 - 12/2019
XK II Coupe (X150)
Description Cylinder Capacity Horse Power Year
5.0 XKR-S 5000 CCM 550 HP 01/2011 - 07/2014
5.0 XKR 5000 CCM 530 HP 09/2010 - 07/2014
5.0 XKR 5000 CCM 510 HP 01/2009 - 07/2014
XK II Convertible (X150)
Description Cylinder Capacity Horse Power Year
5.0 XKR-S 5000 CCM 550 HP 01/2011 - 07/2014
5.0 XKR 5000 CCM 510 HP 01/2009 - 07/2014

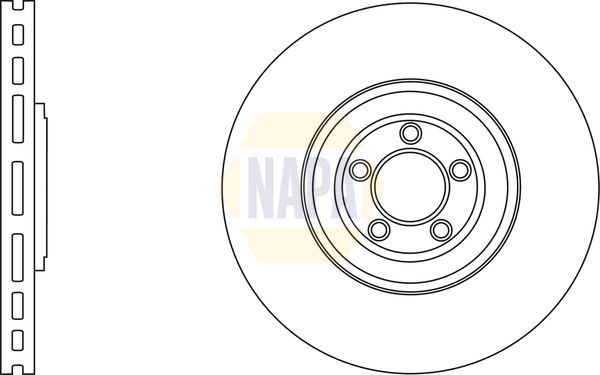

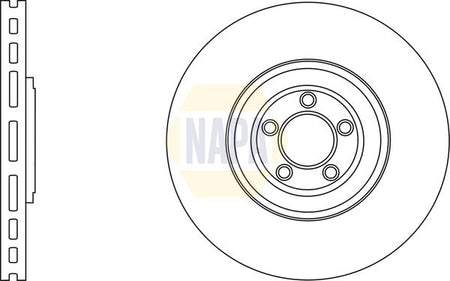

The Napa NBD5806 Brake Disc is a replacement braking component that provides the rotating friction surface acted on by the pads or shoes. Its catalogue specification records vented disc construction, 380 mm outer diameter, 36 mm brake disc thickness, and 71 mm centering diameter. Match the reference, diameter, thickness, mounting pattern and vehicle application before fitting; braking components should be installed and checked by a competent person.

Function : Brake Disc
Brake Disc Type : Vented
Outer Diameter [mm] : 380
Brake Disc Thickness [mm] : 36
Height [mm] : 48
Bolt Hole Circle Ø [mm] : 108
Centering Diameter [mm] : 71
Number of Holes : 5
  • Vendor NAPA
  • SKU NBD5806
  • Barcode 5056599447813
  • JAGUAR : C2D61076 C2P12622 T2R5940
  • APEC : DSK2817
  • BLUE PRINT : ADJ134316
  • BORG & BECK : BBD5947S
  • DELPHI : BG9102C
  • FEBI BILSTEIN : 44144
  • National : NBD2078
