Napa NBD5815 Brake Disc

SKU: NBD5815

Your selected vehicle

In stock

Order by 17:00 for same-day dispatch

£60.28 inc. VAT

Pay in 3 interest-free payments with Klarna

Standard delivery

Free standard delivery is available for eligible UK mainland orders. Charges may apply for express services and non-mainland destinations. See our delivery information for details.

TOYOTA

ALPHARD / VELLFIRE (_H3_)

Description	Cylinder Capacity	Horse Power	Year
3.5 (GGH30W, GGH30)	3456 CCM	275 HP	From 02/2015

RAV 4 IV (_A4_)

Description	Cylinder Capacity	Horse Power	Year
2.5 Hybrid 4WD (AVA44, AVA44_)	2494 CCM	197 HP	11/2015 - 11/2018
2.5 Hybrid (AVA42_)	2494 CCM	197 HP	11/2015 - 11/2018

LEXUS

NX (_Z1_)

Description	Cylinder Capacity	Horse Power	Year
300h (AYZ10_, AYZ10R)	2493 CCM	197 HP	From 07/2014
300h AWD (AYZ15, AYZ15_, AYZ15R)	2494 CCM	197 HP	From 07/2014
300h AWD (AYZ15)	2494 CCM	200 HP	From 11/2018
300h (AYZ10_, AYZ10R)	2494 CCM	197 HP	From 11/2014

RX (_L1_)

Description	Cylinder Capacity	Horse Power	Year
450h (GYL10, GYL10_, GYL10R)	3456 CCM	299 HP	03/2009 - 09/2015
450h AWD (GYL15, GYL15_, GYL15R, GYL16W)	3456 CCM	299 HP	03/2009 - 09/2015

RX (_L2_)

Description	Cylinder Capacity	Horse Power	Year
350 4WD (GGL25, GGL26)	3456 CCM	294 HP	From 10/2015

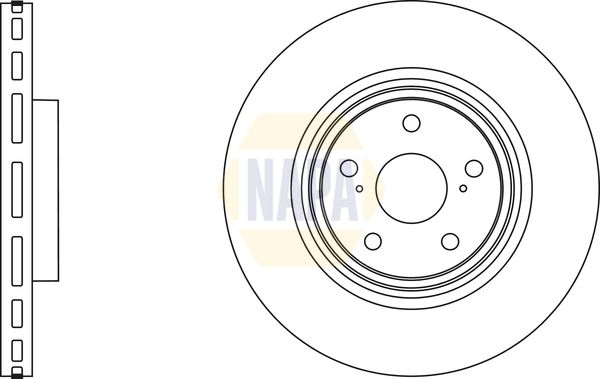

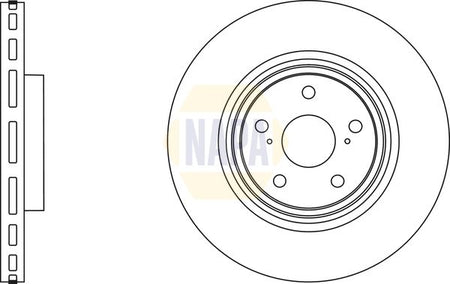

The Napa NBD5815 Brake Disc is a replacement braking component that provides the rotating friction surface acted on by the pads or shoes. Its catalogue specification records vented disc construction, 328 mm outer diameter, 28 mm brake disc thickness, and 62 mm centering diameter. Match the reference, diameter, thickness, mounting pattern and vehicle application before fitting; braking components should be installed and checked by a competent person.

Function : Brake Disc

Brake Disc Type : Vented

Outer Diameter [mm] : 328

Brake Disc Thickness [mm] : 28

Height [mm] : 49

Bolt Hole Circle Ø [mm] : 114

Centering Diameter [mm] : 62

Number of Holes : 5

Napa NBD5815 Brake Disc
