NAPA

Napa NBD5826 Brake Disc

SKU: NBD5826

Your selected vehicle

In stock

Order by 17:00 for same-day dispatch

£86.68 inc. VAT

Pay in 3 interest-free payments with Klarna

Standard delivery

Free standard delivery is available for eligible UK mainland orders. Charges may apply for express services and non-mainland destinations. See our delivery information for details.

MERCEDES-BENZ

S-CLASS (W221, V221)

Description	Cylinder Capacity	Horse Power	Year
S 350 BlueTec (221.026, 221.126)	2987 CCM	258 HP	04/2011 - 12/2013
S 350 CGI (221.057, 221.157)	3498 CCM	306 HP	04/2011 - 12/2013
S 350 CDI (221.022, 221.122)	2987 CCM	235 HP	06/2009 - 12/2013
S 350 (221.056, 221.156)	3498 CCM	272 HP	10/2005 - 12/2013
S 320 CDI (221.022, 221.122)	2987 CCM	235 HP	12/2005 - 06/2009

LEXUS

NX (_Z1_)

Description	Cylinder Capacity	Horse Power	Year
200t AWD (AGZ15_, AGZ15R)	1998 CCM	238 HP	From 07/2014
300 AWD (AGZ15_, AGZ15R)	1998 CCM	238 HP	From 09/2017

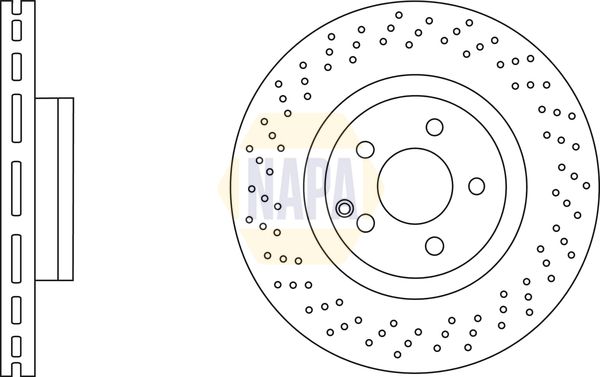

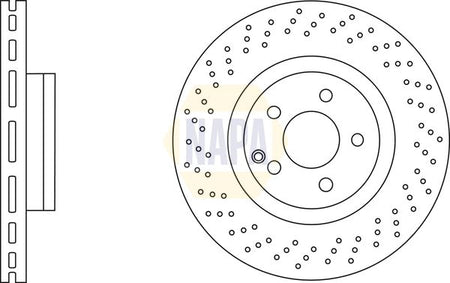

The Napa NBD5826 Brake Disc is a replacement braking component that provides the rotating friction surface acted on by the pads or shoes. Its catalogue specification records perforated/vented disc construction, 335 mm outer diameter, 32 mm brake disc thickness, and 67 mm centering diameter. Match the reference, diameter, thickness, mounting pattern and vehicle application before fitting; braking components should be installed and checked by a competent person.

Function : Brake Disc

Brake Disc Type : perforated/vented

Outer Diameter [mm] : 335

Brake Disc Thickness [mm] : 32

Height [mm] : 64

Bolt Hole Circle Ø [mm] : 112

Centering Diameter [mm] : 67

Number of Holes : 5

Napa NBD5826 Brake Disc
