Napa NBD5836 Brake Disc - 1
Napa NBD5836 Brake Disc - 1
NAPA

Napa NBD5836 Brake Disc

SKU: NBD5836
Your selected vehicle
In stock
Order by 17:00 for same-day dispatch
£32.43 inc. VAT
Pay in 3 interest-free payments with Klarna

Standard delivery

Free standard delivery is available for eligible UK mainland orders. Charges may apply for express services and non-mainland destinations. See our delivery information for details.

SSANGYONG
KORANDO (CK)
Description Cylinder Capacity Horse Power Year
2.0 e-XDi 4WD 1998 CCM 175 HP From 11/2010
2.0 e-XDi 4WD 1998 CCM 150 HP From 02/2012
2.2 Xdi 4WD 2157 CCM 178 HP From 07/2015
KORANDO (C300)
Description Cylinder Capacity Horse Power Year
1.5 e-XGDi 1497 CCM 163 HP From 02/2019
1.5 e-XGDi 4WD 1497 CCM 163 HP From 02/2019
1.6 e-XDi 1597 CCM 136 HP From 02/2019
1.6 e-XDi 4WD 1597 CCM 136 HP From 02/2019
E-Motion 190 HP From 07/2022
E-Motion 207 HP From 08/2023

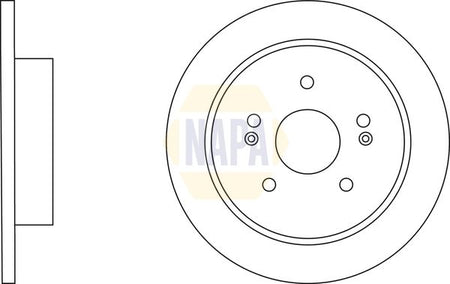

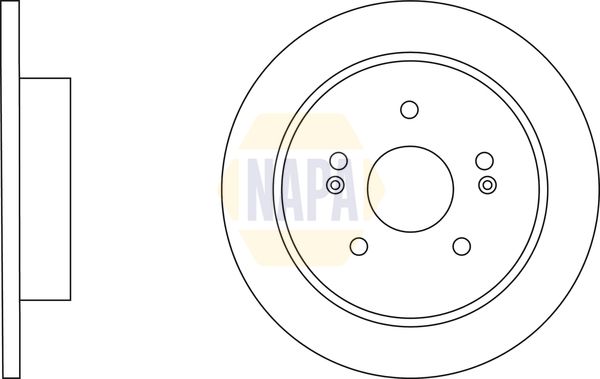

The Napa NBD5836 Brake Disc is a replacement braking component that provides the rotating friction surface acted on by the pads or shoes. Its catalogue specification records solid disc construction, 284 mm outer diameter, 10 mm brake disc thickness, and 67 mm centering diameter. Match the reference, diameter, thickness, mounting pattern and vehicle application before fitting; braking components should be installed and checked by a competent person.

Function : Brake Disc
Brake Disc Type : solid
Outer Diameter [mm] : 284
Brake Disc Thickness [mm] : 10
Height [mm] : 58
Bolt Hole Circle Ø [mm] : 112
Centering Diameter [mm] : 67
Number of Holes : 5
  • Vendor NAPA
  • SKU NBD5836
  • Barcode 5056599448117
  • SSANGYONG : 4840134100 4840134101 4840135100 4840135101
  • APEC : DSK3144
  • BLUE PRINT : ADG043215
  • FEBI BILSTEIN : 170697
  • National : NBD2205
