Home / Car Parts / Braking / Brake Pads & Discs / Brake Discs
Napa NBD5837 Brake Disc - 1
Napa NBD5837 Brake Disc - 1
NAPA

Napa NBD5837 Brake Disc

SKU: NBD5837
Your selected vehicle
Only 2 left
Low inventory - Hurry! — Order by 17:00 for same-day dispatch
£55.98 inc. VAT
Pay in 3 interest-free payments with Klarna

Standard delivery

Free standard delivery is available for eligible UK mainland orders. Charges may apply for express services and non-mainland destinations. See our delivery information for details.

TOYOTA
ALTEZZA GITA Estate (_XE1_)
Description Cylinder Capacity Horse Power Year
2.0 (GXE10) 1988 CCM 155 HP 01/1999 - 06/2001
3.0 (JCE10) 2997 CCM 214 HP 07/2001 - 11/2005
2.0 (GXE10) 1988 CCM 160 HP 07/2001 - 07/2005
ALTEZZA (_E1_)
Description Cylinder Capacity Horse Power Year
3.0 (JCE10) 2997 CCM 214 HP 07/2001 - 11/2005
2.0 VVTi (SXE10) 1998 CCM 200 HP 10/1998 - 11/2005
2.0 VVTi (GXE10) 1988 CCM 160 HP 01/1999 - 05/2005
2.0 VVTi (SXE10) 1998 CCM 209 HP 02/1999 - 11/2005
ARISTO (_S14_)
Description Cylinder Capacity Horse Power Year
3.0 (JZS147) 2997 CCM 279 HP 10/1990 - 09/1996
ARISTO (_S16_)
Description Cylinder Capacity Horse Power Year
3.0 (JZS160) 2997 CCM 231 HP 08/1997 - 09/2004
3.0 (JZS161) 2997 CCM 280 HP 08/1997 - 09/2004
SUPRA (_A8_)
Description Cylinder Capacity Horse Power Year
3.0 i Bi-Turbo (JZA80_, JZA80R) 2997 CCM 330 HP 05/1993 - 07/2002
3.0 i (JZA80_, JZA80R) 2997 CCM 228 HP 05/1993 - 07/2002
3.0 (JZA80_, JZA80R) 2997 CCM 224 HP 05/1993 - 10/1999
3.0 i Bi-Turbo (JZA80_) 2997 CCM 326 HP 03/1994 - 07/2002
LEXUS
GS (JZS147_)
Description Cylinder Capacity Horse Power Year
300 (JZS147_, JZS147R) 2997 CCM 212 HP 01/1993 - 08/1997
GS (_S16_)
Description Cylinder Capacity Horse Power Year
300 (JZS160_, JZS160R) 2997 CCM 222 HP 08/1997 - 10/2000
430 (UZS161_, UZS161R) 4293 CCM 283 HP 11/2000 - 12/2004
300 (JZS160_, JZS160R) 2997 CCM 219 HP 10/2000 - 12/2004
IS I (_E1_)
Description Cylinder Capacity Horse Power Year
200 (GXE10) 1988 CCM 155 HP 04/1999 - 07/2005
300 (JCE10) 2997 CCM 213 HP 09/2001 - 07/2005
IS SportCross (_E1_)
Description Cylinder Capacity Horse Power Year
300 (JCE10_, JCE10R) 2997 CCM 213 HP 10/2001 - 10/2005
200 (GXE10_, GXE10R) 1988 CCM 155 HP 10/2002 - 10/2005
LS (_F1_)
Description Cylinder Capacity Horse Power Year
400 (UCF10) 3969 CCM 245 HP 12/1989 - 12/1995
SC Coupe (_ZZ3_)
Description Cylinder Capacity Horse Power Year
400 (UZZ30) 3969 CCM 264 HP 08/1991 - 12/1997
300 (JZZ31) 2997 CCM 220 HP 01/1995 - 03/2000
400 (UZZ30) 3969 CCM 253 HP 09/1991 - 07/2000
SC Convertible (UZZ40_)
Description Cylinder Capacity Horse Power Year
430 (UZZ40_, UZZ40R) 4293 CCM 286 HP 05/2001 - 07/2010

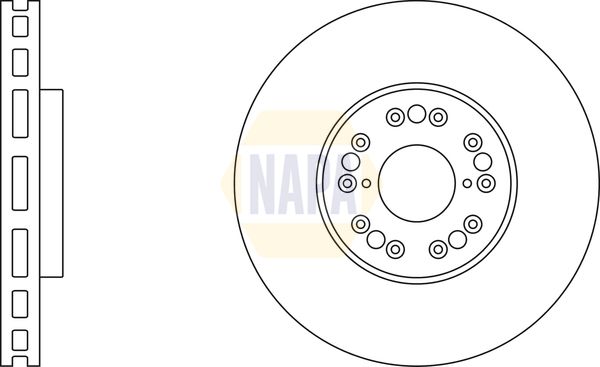

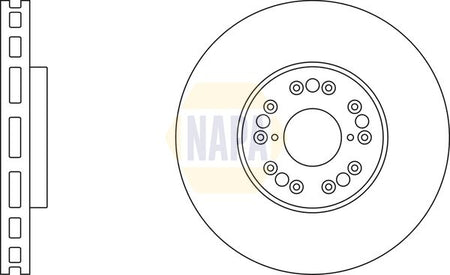

The Napa NBD5837 Brake Disc is a replacement braking component that provides the rotating friction surface acted on by the pads or shoes. Its catalogue specification records vented disc construction, 296 mm outer diameter, 32 mm brake disc thickness, and 62 mm centering diameter. Match the reference, diameter, thickness, mounting pattern and vehicle application before fitting; braking components should be installed and checked by a competent person.

Function : Brake Disc
Brake Disc Type : Vented
Outer Diameter [mm] : 296
Brake Disc Thickness [mm] : 32
Height [mm] : 51
Bolt Hole Circle Ø [mm] : 114
Centering Diameter [mm] : 62
Number of Holes : 5
Test Mark : 90R-02C0349/0655
  • Vendor NAPA
  • SKU NBD5837
  • Barcode 5056599448124
  • TOYOTA : 4351230180
  • LEXUS : 4351230180 4351230241 4351250090 4351250100 4351250112 4351250120
  • APEC : DSK316
  • APEC : SDK6184
  • BLUE PRINT : ADT34387
  • BLUE PRINT : ADT34397
  • Fahren : FBD6184
  • FEBI BILSTEIN : 108556
  • National : NBD563
