Napa NBD5844 Brake Disc - 1
Napa NBD5844 Brake Disc - 2
Napa NBD5844 Brake Disc - 1
Napa NBD5844 Brake Disc - 2
NAPA

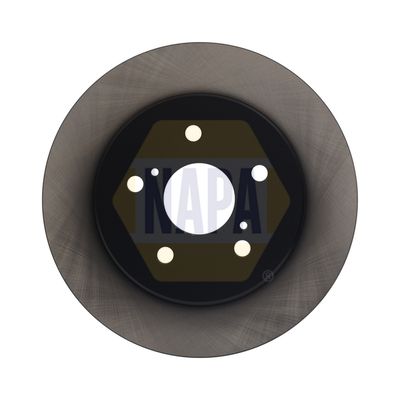

Napa NBD5844 Brake Disc

SKU: NBD5844
Your selected vehicle
In stock
Order by 17:00 for same-day dispatch
£30.78 inc. VAT
Pay in 3 interest-free payments with Klarna

Standard delivery

Free standard delivery is available for eligible UK mainland orders. Charges may apply for express services and non-mainland destinations. See our delivery information for details.

TOYOTA
C-HR (_X1_)
Description Cylinder Capacity Horse Power Year
1.2 (NGX10_, NGX10R) 1197 CCM 116 HP From 10/2016
1.2 4WD (NGX50_, NGX50R) 1197 CCM 116 HP From 10/2016
1.8 Hybrid (ZYX10_, ZYX11_, ZYX10R, ZYX11R) 1798 CCM 122 HP From 10/2016
1.2 4WD (NGX50) 1197 CCM 131 HP From 10/2016
C-HR VAN (_X1_)
Description Cylinder Capacity Horse Power Year
1.8 Hybrid (ZYX10, ZYX11) 1798 CCM 122 HP From 10/2016
CAMRY (_V7_, _VA7_, _VH7_)
Description Cylinder Capacity Horse Power Year
2.5 Hybrid (AXVH71_, AXVH70, AXVH71R) 2487 CCM 218 HP From 08/2017
COROLLA CROSS (ZVG1_, ZSG1_, MXGH1_, MXGA1_)
Description Cylinder Capacity Horse Power Year
2.0 VVTi Hybrid (MXGH12, MXGH10) 1987 CCM 196 HP From 08/2022
2.0 VVTi Hybrid AWD (MXGH15) 1987 CCM 196 HP From 08/2022
PRIUS (_W6_)
Description Cylinder Capacity Horse Power Year
2.0 PHEV (MXWH61L, MXWH61) 1986 CCM 223 HP From 01/2023
YARIS CROSS (MXP_)
Description Cylinder Capacity Horse Power Year
1.5 Hybrid All-wheel Drive (MXPJ15) 1490 CCM 116 HP From 09/2020
1.5 Hybrid (MXPJ11) 1490 CCM 131 HP From 01/2024
1.5 Hybrid AWD-i (MXPJ16) 1490 CCM 131 HP From 01/2024
LEXUS
ES (_Z10_, _A10_, _H10_)
Description Cylinder Capacity Horse Power Year
200 (ASZ10) 1998 CCM 150 HP From 10/2018
250 (AXZA10) 2487 CCM 200 HP From 10/2018
350 (GSZ10) 3456 CCM 249 HP From 10/2018
300h (AXZH10, AXZH11) 2487 CCM 218 HP From 07/2018
NX (_Z1_)
Description Cylinder Capacity Horse Power Year
200t AWD (AGZ15_, AGZ15R) 1998 CCM 238 HP From 07/2014
300h (AYZ10_, AYZ10R) 2493 CCM 197 HP From 07/2014
300 AWD (AGZ15_, AGZ15R) 1998 CCM 238 HP From 09/2017
300h AWD (AYZ15, AYZ15_, AYZ15R) 2494 CCM 197 HP From 07/2014
300h AWD (AYZ15) 2494 CCM 200 HP From 11/2018
300h (AYZ10_, AYZ10R) 2494 CCM 197 HP From 11/2014
UX (_AA1_, _AH1_, _MA1_)
Description Cylinder Capacity Horse Power Year
200 (MZAA10) 1987 CCM 171 HP From 10/2018
250h E-Four (MZAH15) 1987 CCM 178 HP From 10/2018
250h E-Four (MZAH15) 1987 CCM 184 HP From 10/2018
250h (MZAH10) 1987 CCM 184 HP From 10/2018
250h (MZAH10) 1987 CCM 178 HP From 10/2018
200 (MZAA10) 1987 CCM 150 HP From 10/2018
300h E-Four (MZAH16) 1987 CCM 199 HP From 02/2024
300h (MZAH11) 1987 CCM 199 HP From 02/2024

The Napa NBD5844 Brake Disc is a replacement braking component that provides the rotating friction surface acted on by the pads or shoes. Its catalogue specification records solid disc construction, 281 mm outer diameter, 12 mm brake disc thickness, and 62 mm centering diameter. Match the reference, diameter, thickness, mounting pattern and vehicle application before fitting; braking components should be installed and checked by a competent person.

Function : Brake Disc
Brake Disc Type : solid
Outer Diameter [mm] : 281
Brake Disc Thickness [mm] : 12
Height [mm] : 44
Bolt Hole Circle Ø [mm] : 114
Centering Diameter [mm] : 62
Number of Holes : 5
  • Vendor NAPA
  • SKU NBD5844
  • Barcode 5056599448193
  • TOYOTA : 4243106180
  • LEXUS : 4243178010
  • APEC : DSK3203
  • BLUE PRINT : ADT343310
  • DELPHI : BG4928C
  • FEBI BILSTEIN : 108688
  • National : NBD1964
