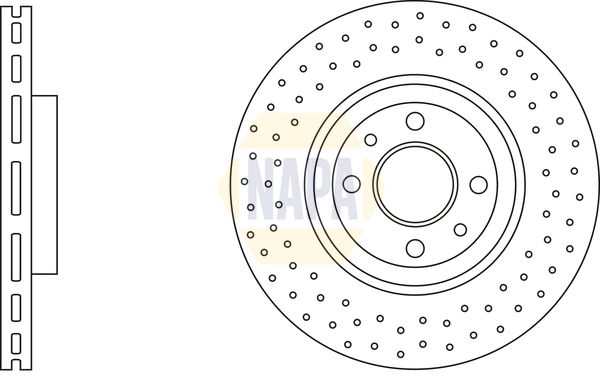

Napa NBD5847 Brake Disc - 1
Napa NBD5847 Brake Disc - 1
NAPA

Napa NBD5847 Brake Disc

SKU: NBD5847
Your selected vehicle
In stock
Order by 17:00 for same-day dispatch
£43.55 inc. VAT
Pay in 3 interest-free payments with Klarna

Standard delivery

Free standard delivery is available for eligible UK mainland orders. Charges may apply for express services and non-mainland destinations. See our delivery information for details.

ABARTH
500 / 595 / 695
Description Cylinder Capacity Horse Power Year
1.4 (312.AXZ11) 1368 CCM 165 HP From 05/2016
1.4 (312.AYB11, 312.AYB1A) 1368 CCM 163 HP From 06/2016
500C / 595C / 695C
Description Cylinder Capacity Horse Power Year
1.4 (312.AXF1A, 312.AXF11, 312.AXD1A) 1368 CCM 140 HP From 09/2009
1.4 (312.AXF1A, 312.AXD1A) 1368 CCM 160 HP From 05/2011
1.4 (312.AXF11, 312.AXF1A) 1368 CCM 180 HP From 06/2010
1.4 (312.AXD1A) 1368 CCM 135 HP From 05/2008
1.4 (312.AXZ1A) 1368 CCM 165 HP From 05/2016

The Napa NBD5847 Brake Disc is a replacement braking component that provides the rotating friction surface acted on by the pads or shoes. Its catalogue specification records perforated/vented disc construction, 284 mm outer diameter, 22 mm brake disc thickness, and 59 mm centering diameter. Match the reference, diameter, thickness, mounting pattern and vehicle application before fitting; braking components should be installed and checked by a competent person.

Function : Brake Disc
Brake Disc Type : perforated/vented
Outer Diameter [mm] : 284
Brake Disc Thickness [mm] : 22
Height [mm] : 43
Bolt Hole Circle Ø [mm] : 98
Centering Diameter [mm] : 59
Number of Holes : 4
  • Vendor NAPA
  • SKU NBD5847
  • Barcode 5056599448223
  • FIAT : 51938383 5741446
  • APEC : DSK3236
  • APEC : SDK6851
  • BLUE PRINT : ADL144319
  • FEBI BILSTEIN : 18546
  • National : NBD2027
  • National : NBD348
