NAPA

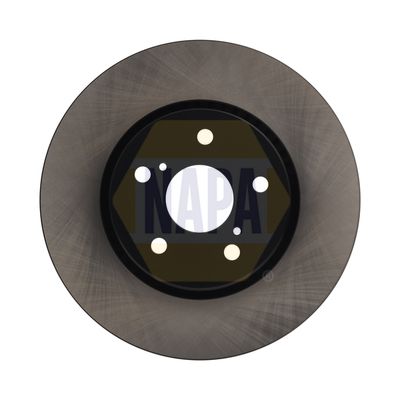

Napa NBD5864 Brake Disc

SKU: NBD5864
Your selected vehicle
In stock
Order by 17:00 for same-day dispatch
£57.95 inc. VAT
Pay in 3 interest-free payments with Klarna

Standard delivery

Free standard delivery is available for eligible UK mainland orders. Charges may apply for express services and non-mainland destinations. See our delivery information for details.

TOYOTA
C-HR (_X1_)
Description Cylinder Capacity Horse Power Year
1.2 (NGX10_, NGX10R) 1197 CCM 116 HP From 10/2016
1.2 4WD (NGX50_, NGX50R) 1197 CCM 116 HP From 10/2016
1.8 Hybrid (ZYX10_, ZYX11_, ZYX10R, ZYX11R) 1798 CCM 122 HP From 10/2016
1.2 4WD (NGX50) 1197 CCM 131 HP From 10/2016
2.0 Hybrid (MAXH10) 1987 CCM 184 HP From 10/2019
C-HR VAN (_X1_)
Description Cylinder Capacity Horse Power Year
1.8 Hybrid (ZYX10, ZYX11) 1798 CCM 122 HP From 10/2016
COROLLA Hatchback (_E21_, _EA1_, _EH1_)
Description Cylinder Capacity Horse Power Year
2.0 Hybrid (MZEH12) 1987 CCM 180 HP From 02/2019
2.0 Hybrid (MZEH12) 1987 CCM 184 HP From 05/2021
2.0 Hybrid (MZEH19) 1987 CCM 196 HP From 01/2023
2.0 Hybrid (MZEH19L) 1987 CCM 178 HP From 02/2025
COROLLA Estate (_E21_)
Description Cylinder Capacity Horse Power Year
2.0 Hybrid (MZEH12) 1987 CCM 180 HP From 02/2019
2.0 Hybrid (MZEH12) 1987 CCM 184 HP From 05/2021
2.0 Hybrid (MZEH19) 1987 CCM 196 HP From 01/2023
2.0 Hybrid (MZEH19L) 1987 CCM 178 HP From 02/2025

The Napa NBD5864 Brake Disc is a replacement braking component that provides the rotating friction surface acted on by the pads or shoes. Its catalogue specification records vented disc construction, 298 mm outer diameter, 28 mm brake disc thickness, and 62 mm centering diameter. Match the reference, diameter, thickness, mounting pattern and vehicle application before fitting; braking components should be installed and checked by a competent person.

Function : Brake Disc
Brake Disc Type : Vented
Outer Diameter [mm] : 298
Brake Disc Thickness [mm] : 28
Height [mm] : 49
Bolt Hole Circle Ø [mm] : 114
Centering Diameter [mm] : 62
Number of Holes : 5
  • Vendor NAPA
  • SKU NBD5864
  • Barcode 5056599448391
  • TOYOTA : 43512F4010
  • APEC : DSK3373
  • APEC : SDK6961
  • BLUE PRINT : ADT343316
  • BORG & BECK : BBD5502
  • National : NBD1971
