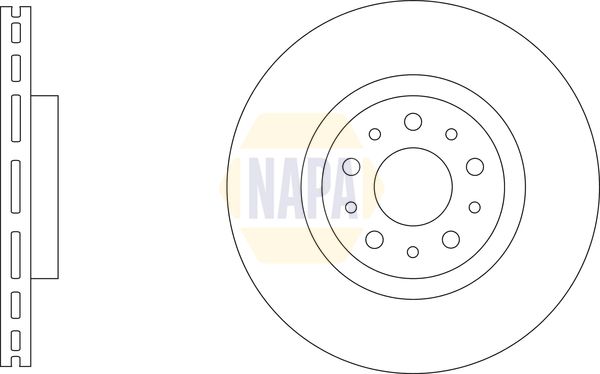

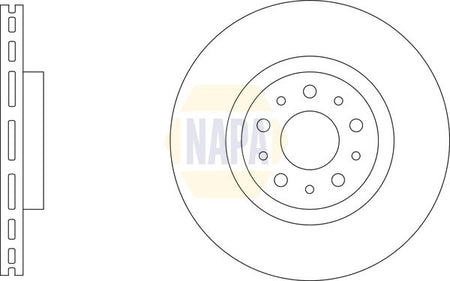

Napa NBD5866 Brake Disc - 1
Napa NBD5866 Brake Disc - 1
NAPA

Napa NBD5866 Brake Disc

SKU: NBD5866
Your selected vehicle
In stock
Order by 17:00 for same-day dispatch
£51.69 inc. VAT
Pay in 3 interest-free payments with Klarna

Standard delivery

Free standard delivery is available for eligible UK mainland orders. Charges may apply for express services and non-mainland destinations. See our delivery information for details.

FIAT
TIPO Saloon (356_, 357_)
Description Cylinder Capacity Horse Power Year
1.6 D (356SXG1B) 1598 CCM 120 HP 10/2015 - 10/2020
1.4 LPG (356SXF1B) 1368 CCM 120 HP 05/2016 - 10/2020
1.0 (357SXN1A) 999 CCM 101 HP From 11/2020
1.6 Multijet (357SXG1) 1598 CCM 131 HP From 11/2020
TIPO Hatchback (356_, 357_)
Description Cylinder Capacity Horse Power Year
1.6 D (356HXG1B, 356HXG11) 1598 CCM 120 HP 03/2016 - 10/2020
1.4 (356HXF1B) 1368 CCM 120 HP 03/2016 - 10/2020
1.4 LPG (356HXF1B) 1368 CCM 120 HP 05/2016 - 10/2020
1.0 (357HXN1A) 999 CCM 101 HP From 11/2020
1.6 Multijet (357HXG1) 1598 CCM 131 HP From 11/2020
1.5 T4 Hybrid 1469 CCM 131 HP From 03/2022
TIPO Estate (356_, 357_)
Description Cylinder Capacity Horse Power Year
1.6 D (356WXG1B) 1598 CCM 120 HP 03/2016 - 10/2020
1.4 (356WXF1B) 1368 CCM 120 HP 03/2016 - 10/2020
1.4 LPG (356WXF1B) 1368 CCM 120 HP 05/2016 - 10/2020
1.0 (357WXN1A) 999 CCM 101 HP From 11/2020
1.6 Multijet (357WXG1) 1598 CCM 131 HP From 11/2020
1.5 T4 Hybrid 1469 CCM 131 HP From 03/2022

The Napa NBD5866 Brake Disc is a replacement braking component that provides the rotating friction surface acted on by the pads or shoes. Its catalogue specification records vented disc construction, 281 mm outer diameter, 26 mm brake disc thickness, and 59 mm centering diameter. Match the reference, diameter, thickness, mounting pattern and vehicle application before fitting; braking components should be installed and checked by a competent person.

Function : Brake Disc
Brake Disc Type : Vented
Outer Diameter [mm] : 281
Brake Disc Thickness [mm] : 26
Height [mm] : 43
Bolt Hole Circle Ø [mm] : 98
Centering Diameter [mm] : 59
Number of Holes : 5
  • Vendor NAPA
  • SKU NBD5866
  • Barcode 5056599448414
  • FIAT : 52017292 52017293 52159154 52159155
  • APEC : DSK3388
  • APEC : SDK6945
  • BLUE PRINT : ADBP430068
  • BORG & BECK : BBD6309
  • DELPHI : BG4821C
  • DELPHI : BG5188C
  • FEBI BILSTEIN : 173028
  • National : NBD2077
  • SKF : VKBD 80809 V2
