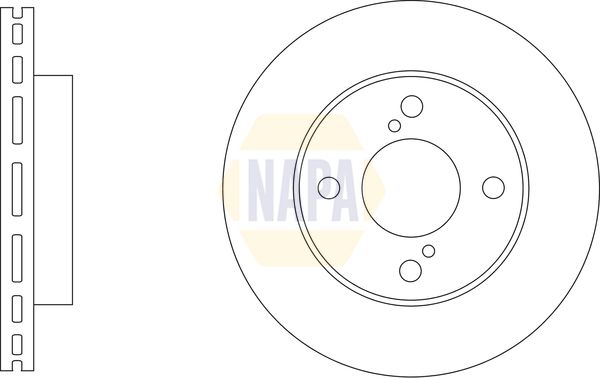

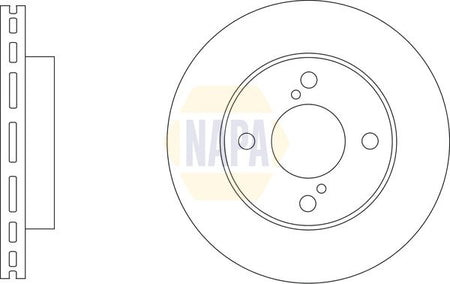

Napa NBD5874 Brake Disc - 1
Napa NBD5874 Brake Disc - 1
NAPA

Napa NBD5874 Brake Disc

SKU: NBD5874
Your selected vehicle
In stock
Order by 17:00 for same-day dispatch
£32.63 inc. VAT
Pay in 3 interest-free payments with Klarna

Standard delivery

Free standard delivery is available for eligible UK mainland orders. Charges may apply for express services and non-mainland destinations. See our delivery information for details.

SUZUKI
IGNIS III (MF, FF)
Description Cylinder Capacity Horse Power Year
1.2 (ATK412) 1242 CCM 90 HP From 10/2016
1.2 AllGrip (ATK412) 1242 CCM 90 HP From 10/2016
1.2 Hybrid (ATK412, FF21S) 1242 CCM 90 HP From 02/2016
1.2 Hybrid AllGrip (ATK412) 1242 CCM 90 HP From 02/2016
1.2 Hybrid (ATK412) 1197 CCM 83 HP From 04/2020
1.2 Hybrid AllGrip (ATK412) 1197 CCM 83 HP From 04/2020

The Napa NBD5874 Brake Disc is a replacement braking component that provides the rotating friction surface acted on by the pads or shoes. Its catalogue specification records vented disc construction, 230 mm outer diameter, 20 mm brake disc thickness, and 60 mm centering diameter. Match the reference, diameter, thickness, mounting pattern and vehicle application before fitting; braking components should be installed and checked by a competent person.

Function : Brake Disc
Brake Disc Type : Vented
Outer Diameter [mm] : 230
Brake Disc Thickness [mm] : 20
Height [mm] : 45
Bolt Hole Circle Ø [mm] : 100
Centering Diameter [mm] : 60
Number of Holes : 4
  • Vendor NAPA
  • SKU NBD5874
  • Barcode 5056599448490
  • SUZUKI : 5531162R00 5531162R00000
  • APEC : DSK3448
  • BLUE PRINT : ADBP430102
  • BORG & BECK : BBD5542
  • DELPHI : BG4974C
  • National : NBD2052
