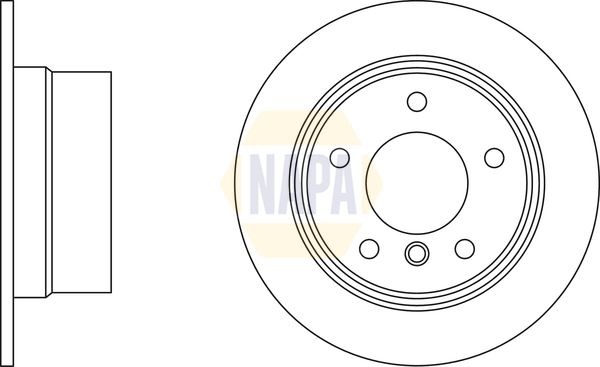

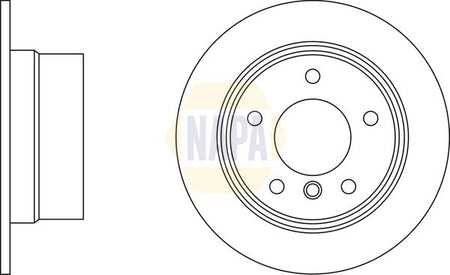

Napa NBD5880 Brake Disc - 1
Napa NBD5880 Brake Disc - 1
NAPA

Napa NBD5880 Brake Disc

SKU: NBD5880
Your selected vehicle
Out of stock
Out of Stock
£41.03 inc. VAT
Pay in 3 interest-free payments with Klarna

Standard delivery

Free standard delivery is available for eligible UK mainland orders. Charges may apply for express services and non-mainland destinations. See our delivery information for details.

BMW
Z3 Roadster (E36)
Description Cylinder Capacity Horse Power Year
1.9 i 1895 CCM 140 HP 11/1995 - 03/1999
2.8 i 2793 CCM 193 HP 11/1996 - 05/2000
1.9 i 1895 CCM 118 HP 07/1998 - 01/2003
2.0 i 1990 CCM 150 HP 04/1999 - 01/2003
1.9 i 1895 CCM 116 HP 01/1999 - 01/2003
3.0 i 2979 CCM 231 HP 06/2000 - 01/2003
2.2 i 2171 CCM 170 HP 10/2000 - 06/2002
2.2 i 2171 CCM 163 HP 08/2000 - 01/2003
Z3 Coupe (E36)
Description Cylinder Capacity Horse Power Year
2.8 i 2793 CCM 193 HP 01/1998 - 05/2000
3.0 i 2979 CCM 231 HP 06/2000 - 06/2003

The Napa NBD5880 Brake Disc is a replacement braking component that provides the rotating friction surface acted on by the pads or shoes. Its catalogue specification records solid disc construction, 272 mm outer diameter, 10 mm brake disc thickness, and 75 mm centering diameter. Match the reference, diameter, thickness, mounting pattern and vehicle application before fitting; braking components should be installed and checked by a competent person.

Function : Brake Disc
Brake Disc Type : solid
Outer Diameter [mm] : 272
Brake Disc Thickness [mm] : 10
Height [mm] : 83
Bolt Hole Circle Ø [mm] : 120
Centering Diameter [mm] : 75
Number of Holes : 5
Test Mark : 90R-02C0357/0203
  • Vendor NAPA
  • SKU NBD5880
  • Barcode 5056599448551
  • BMW : 34211163845 34211164399 34216794298
  • APEC : DSK352
  • BLUE PRINT : ADB114351
  • DELPHI : BG3592
  • FEBI BILSTEIN : 23555
  • National : NBD878
