NAPA

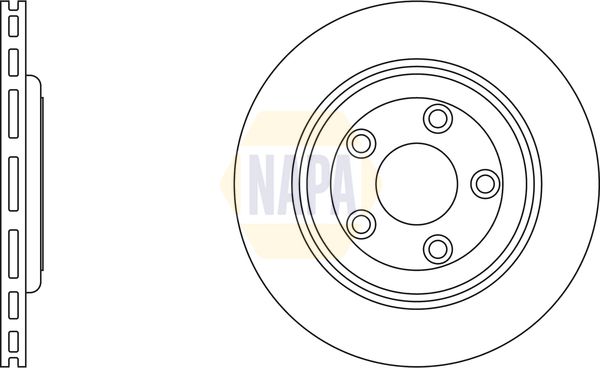

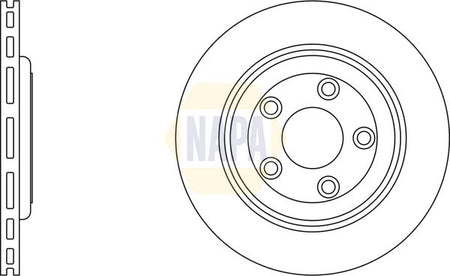

Napa NBD5903 Brake Disc

SKU: NBD5903

Your selected vehicle

In stock

Order by 17:00 for same-day dispatch

£36.97 inc. VAT

Pay in 3 interest-free payments with Klarna

Standard delivery

Free standard delivery is available for eligible UK mainland orders. Charges may apply for express services and non-mainland destinations. See our delivery information for details.

DAIMLER

SUPER EIGHT (X350)

Description	Cylinder Capacity	Horse Power	Year
4.2	4196 CCM	395 HP	09/2005 - 12/2009

JAGUAR

S-TYPE II (X200)

Description	Cylinder Capacity	Horse Power	Year
3.0 V6	2967 CCM	238 HP	01/1999 - 10/2007
4.0 V8	3996 CCM	276 HP	01/1999 - 04/2002
2.5 V6	2497 CCM	200 HP	04/2002 - 10/2007
4.2 V8	4196 CCM	298 HP	04/2002 - 10/2007
2.7 D	2720 CCM	207 HP	06/2004 - 10/2007

XJ (X350, X358)

Description	Cylinder Capacity	Horse Power	Year
3.0	2967 CCM	238 HP	05/2003 - 03/2009
3.6	3555 CCM	258 HP	05/2003 - 03/2009
4.2	4196 CCM	298 HP	05/2003 - 03/2009
3.0	2967 CCM	243 HP	04/2004 - 01/2007
4.2	4196 CCM	305 HP	05/2007 - 03/2009

The Napa NBD5903 Brake Disc is a replacement braking component that provides the rotating friction surface acted on by the pads or shoes. Its catalogue specification records vented disc construction, 288 mm outer diameter, 20 mm brake disc thickness, and 64 mm centering diameter. Match the reference, diameter, thickness, mounting pattern and vehicle application before fitting; braking components should be installed and checked by a competent person.

Function : Brake Disc

Brake Disc Type : Vented

Outer Diameter [mm] : 288

Brake Disc Thickness [mm] : 20

Height [mm] : 32

Bolt Hole Circle Ø [mm] : 108

Centering Diameter [mm] : 64

Number of Holes : 5

Test Mark : 90R-02C0349/1441

Napa NBD5903 Brake Disc
