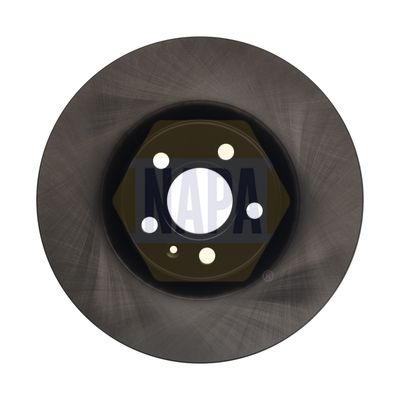

Napa NBD5913 Brake Disc - 1
Napa NBD5913 Brake Disc - 2
Napa NBD5913 Brake Disc - 1
Napa NBD5913 Brake Disc - 2
NAPA

Napa NBD5913 Brake Disc

SKU: NBD5913
Your selected vehicle
Only 4 left
Low inventory - Hurry! — Order by 17:00 for same-day dispatch
£64.63 inc. VAT
Pay in 3 interest-free payments with Klarna

Standard delivery

Free standard delivery is available for eligible UK mainland orders. Charges may apply for express services and non-mainland destinations. See our delivery information for details.

VOLVO
S60 III (224)
Description Cylinder Capacity Horse Power Year
T4 1969 CCM 190 HP 02/2019 - 12/2021
T4 Polestar 1969 CCM 210 HP 07/2019 - 12/2021
B4 Mild-Hybrid 1969 CCM 197 HP From 03/2020
S90 II (234)
Description Cylinder Capacity Horse Power Year
D4 1969 CCM 190 HP 03/2016 - 12/2021
T5 1969 CCM 254 HP 03/2016 - 12/2021
D4 AWD 1969 CCM 190 HP 03/2016 - 12/2021
D3 1969 CCM 150 HP 03/2016 - 12/2021
D4 1969 CCM 163 HP 09/2018 - 12/2021
T5 Drive-E Polestar 1969 CCM 253 HP 10/2017 - 12/2021
V90 II Cross Country (236)
Description Cylinder Capacity Horse Power Year
T5 AWD 1969 CCM 254 HP 10/2016 - 12/2018
T5 AWD 1969 CCM 249 HP 03/2016 - 12/2021
T5 Polestar AWD 1969 CCM 253 HP From 10/2017
V90 II Estate (235)
Description Cylinder Capacity Horse Power Year
T5 1969 CCM 254 HP 03/2016 - 12/2018
D4 1969 CCM 190 HP 03/2016 - 12/2021
D4 AWD 1969 CCM 190 HP 03/2016 - 12/2021
XC40 (536)
Description Cylinder Capacity Horse Power Year
T5 AWD 1969 CCM 247 HP 10/2017 - 09/2021
D4 AWD 1969 CCM 190 HP 10/2017 - 09/2021
T4 1969 CCM 190 HP 09/2018 - 12/2021
T4 AWD 1969 CCM 190 HP From 09/2018
T5 AWD 1969 CCM 249 HP 10/2017 - 12/2022
T5 Polestar AWD 1969 CCM 249 HP 10/2017 - 09/2019
B4 Mild-Hybrid AWD 1969 CCM 197 HP From 09/2019
B4 Mild-Hybrid 1969 CCM 197 HP From 09/2019

The Napa NBD5913 Brake Disc is a replacement braking component that provides the rotating friction surface acted on by the pads or shoes. Its catalogue specification records vented disc construction, 322 mm outer diameter, 28 mm brake disc thickness, and 64 mm centering diameter. Match the reference, diameter, thickness, mounting pattern and vehicle application before fitting; braking components should be installed and checked by a competent person.

Function : Brake Disc
Brake Disc Type : Vented
Outer Diameter [mm] : 322
Brake Disc Thickness [mm] : 28
Bolt Hole Circle Ø [mm] : 108
Centering Diameter [mm] : 64
Number of Holes : 5
Machining : High-carbon
  • Vendor NAPA
  • SKU NBD5913
  • Barcode 5056667439245
  • VOLVO : 31362685 31423724 31471413 31665446 32217561 32233185 32254356 32300122
  • BLUE PRINT : ADF124365
  • BORG & BECK : BBD6148S
  • DELPHI : BG9330C
  • FEBI BILSTEIN : 106352
  • National : NBD2164
  • SKF : VKBD 81404 V1
