Napa NBD5946 Brake Disc - 1
Napa NBD5946 Brake Disc - 2
Napa NBD5946 Brake Disc - 1
Napa NBD5946 Brake Disc - 2
NAPA

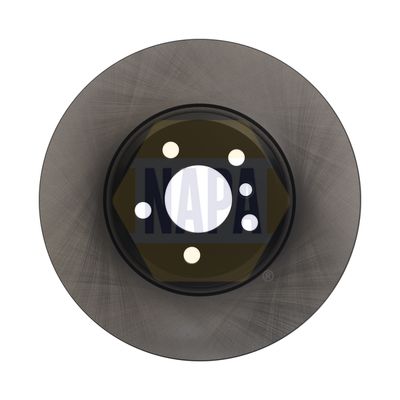

Napa NBD5946 Brake Disc

SKU: NBD5946
Your selected vehicle
In stock
Order by 17:00 for same-day dispatch
£73.35 inc. VAT
Pay in 3 interest-free payments with Klarna

Standard delivery

Free standard delivery is available for eligible UK mainland orders. Charges may apply for express services and non-mainland destinations. See our delivery information for details.

BMW
5 (G30, F90)
Description Cylinder Capacity Horse Power Year
520 d 1995 CCM 190 HP 09/2016 - 06/2023
520 d xDrive 1995 CCM 190 HP 09/2016 - 06/2023
520 d 1995 CCM 163 HP 09/2016 - 06/2023
520 d xDrive 1995 CCM 163 HP 09/2016 - 06/2023
5 Touring (G31)
Description Cylinder Capacity Horse Power Year
520 d 1995 CCM 190 HP From 03/2017
520 d 1995 CCM 163 HP From 03/2017
520 d xDrive 1995 CCM 190 HP From 07/2017
520 i 1998 CCM 184 HP 07/2017 - 06/2020
520 i 1998 CCM 163 HP 07/2017 - 06/2020
X3 (G01, F97, G08)
Description Cylinder Capacity Horse Power Year
xDrive 20 d 1995 CCM 190 HP 08/2017 - 03/2020
xDrive 30 d 2993 CCM 265 HP 08/2017 - 06/2020
xDrive 30 i 1998 CCM 252 HP From 08/2017
xDrive 20 i 1998 CCM 184 HP From 12/2017
xDrive 20 d 1995 CCM 163 HP 08/2017 - 03/2020
sDrive 20 i 1998 CCM 184 HP From 12/2017
xDrive 25 d 1995 CCM 231 HP From 04/2018
sDrive 18 d 1995 CCM 150 HP 04/2018 - 06/2020
sDrive 18 d 1995 CCM 136 HP 04/2018 - 06/2020
xDrive 25 d 1995 CCM 211 HP From 04/2018
xDrive 30 d 2993 CCM 249 HP 12/2017 - 06/2020
X3 Van (G01)
Description Cylinder Capacity Horse Power Year
sDrive 18 d 1995 CCM 150 HP From 04/2018
X4 (G02, F98)
Description Cylinder Capacity Horse Power Year
xDrive 20 i 1998 CCM 184 HP From 04/2018
xDrive 20 d 1995 CCM 190 HP 04/2018 - 03/2020
xDrive 20 d 1995 CCM 163 HP 04/2018 - 03/2020
Z4 Roadster (G29)
Description Cylinder Capacity Horse Power Year
sDrive 20 i 1998 CCM 197 HP From 11/2018
sDrive 30 i 1998 CCM 258 HP From 11/2018
sDrive 20 i 1998 CCM 163 HP From 11/2018
TOYOTA
SUPRA (DB_)
Description Cylinder Capacity Horse Power Year
2.0 (DB21, DB22, DB23, DB26) 1998 CCM 258 HP From 06/2019

The Napa NBD5946 Brake Disc is a replacement braking component that provides the rotating friction surface acted on by the pads or shoes. Its catalogue specification records vented disc construction, 330 mm outer diameter, 24 mm brake disc thickness, and 67 mm centering diameter. Match the reference, diameter, thickness, mounting pattern and vehicle application before fitting; braking components should be installed and checked by a competent person.

Function : Brake Disc
Brake Disc Type : Vented
Outer Diameter [mm] : 330
Brake Disc Thickness [mm] : 24
Height [mm] : 66
Bolt Hole Circle Ø [mm] : 112
Centering Diameter [mm] : 67
Number of Holes : 5
Test Mark : 90R-02C0448/1496
  • Vendor NAPA
  • SKU NBD5946
  • Barcode 5056667481329
  • BMW : 34106880072 34116860907
  • BLUE PRINT : ADBP430064
  • BORG & BECK : BBD6072S
  • BORG & BECK : BBD7022S
  • DELPHI : BG9454BC
  • FEBI BILSTEIN : 173011
