Napa NBD5957 Brake Disc - 1
Napa NBD5957 Brake Disc - 1
NAPA

Napa NBD5957 Brake Disc

SKU: NBD5957
Your selected vehicle
In stock
Order by 17:00 for same-day dispatch
£27.58 inc. VAT
Pay in 3 interest-free payments with Klarna

Standard delivery

Free standard delivery is available for eligible UK mainland orders. Charges may apply for express services and non-mainland destinations. See our delivery information for details.

SUZUKI
SWIFT V (AZ)
Description Cylinder Capacity Horse Power Year
1.0 (A2L310) 998 CCM 111 HP From 04/2017
1.0 SHVS (A2L310) 998 CCM 111 HP From 04/2017
1.2 (A2L412, ZC83S) 1242 CCM 90 HP From 04/2017
1.2 SHVS (A2L412) 1242 CCM 90 HP From 04/2017
1.2 SHVS AllGrip (A2L412) 1242 CCM 90 HP From 04/2017
1.2 AllGrip (A2L412) 1242 CCM 90 HP From 04/2017
1.2 SHVS AllGrip (ZD53S) 1242 CCM 91 HP From 01/2017
1.2 Hybrid (Mild Hybrid) (A2L412) 1197 CCM 83 HP From 06/2020
1.2 Hybrid (Mild Hybrid) AllGrip (A2L412) 1197 CCM 83 HP From 06/2020

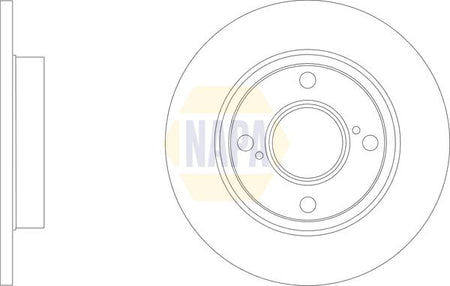

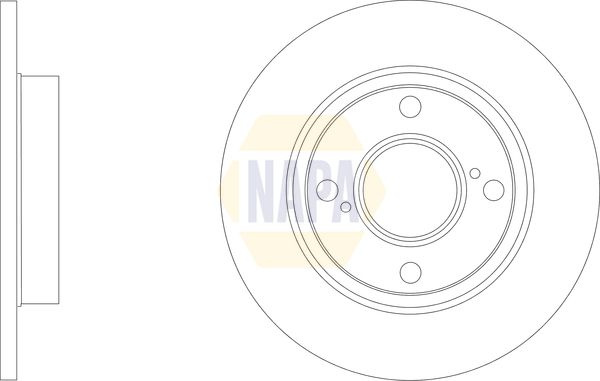

The Napa NBD5957 Brake Disc is a replacement braking component that provides the rotating friction surface acted on by the pads or shoes. Its catalogue specification records solid disc construction, 228 mm outer diameter, 9 mm brake disc thickness, and 62 mm centering diameter. Match the reference, diameter, thickness, mounting pattern and vehicle application before fitting; braking components should be installed and checked by a competent person.

Function : Brake Disc
Brake Disc Type : solid
Outer Diameter [mm] : 228
Brake Disc Thickness [mm] : 9
Height [mm] : 34
Bolt Hole Circle Ø [mm] : 100
Centering Diameter [mm] : 62
Number of Holes : 4
Test Mark : 90R-02C0355/1422
  • Vendor NAPA
  • SKU NBD5957
  • Barcode 5056667481435
  • SUZUKI : 5561152R00 5561152R01
  • APEC : DSK3828
  • APEC : SDK7012
  • BLUE PRINT : ADK84351
  • BLUE PRINT : ADK84352
  • BORG & BECK : BBD5530
