Napa NBD5970 Brake Disc - 1
Napa NBD5970 Brake Disc - 1
NAPA

Napa NBD5970 Brake Disc

5.0/5 71 reviews
SKU: NBD5970

Check product compatibility

Enter your registration or select your vehicle to check this product fits.

In stock
Orders placed by 17:00 are usually dispatched the same working day
£50.72 inc. VAT

Complete the job

APEC — Aerosol Brake cleaner 600ml
£6.92

Pay in 3 interest-free payments with Klarna

Available at checkout. Subject to eligibility.

Free standard delivery to UK mainland

Delivery estimate confirmed at checkout. Delivery details
Pay securely with
  • Visa
  • Mastercard
  • Apple Pay
  • PayPal
  • Klarna
  • Google Pay

Need help with fitment? 01472 869 066

Spend & Earn

Earn 2% store credit on eligible parts spend. Available 30 days after fulfilment. Sign in at checkout to use your balance.

Excludes VAT, delivery, discounts and amounts paid with store credit.

FORD
TRANSIT Platform/Chassis (FM_ _, FN_ _, FF_ _)
Description Cylinder Capacity Horse Power Year
2.2 TDCi RWD 2198 CCM 100 HP 10/2011 - 08/2014
2.2 TDCi RWD 2198 CCM 125 HP 10/2011 - 08/2014
2.2 TDCi RWD 2198 CCM 155 HP 10/2011 - 08/2014
2.3 16V RWD 2261 CCM 145 HP 04/2006 - 08/2014
2.4 TDCi RWD 2402 CCM 100 HP 04/2006 - 08/2014
2.4 TDCi RWD 2402 CCM 115 HP 04/2006 - 08/2014
2.4 TDCi RWD 2402 CCM 140 HP 04/2006 - 08/2014
3.2 TDCi RWD 3199 CCM 200 HP 09/2007 - 08/2014
TRANSIT Bus (FD_ _, FB_ _, FS_ _, FZ_ _, FC_ _)
Description Cylinder Capacity Horse Power Year
2.2 TDCi 2198 CCM 100 HP 10/2011 - 08/2014
2.2 TDCi 2198 CCM 125 HP 10/2011 - 08/2014
2.2 TDCi RWD 2198 CCM 100 HP 10/2011 - 08/2014
2.2 TDCi RWD 2198 CCM 125 HP 09/2011 - 12/2014
2.2 TDCi 2198 CCM 85 HP 04/2006 - 08/2014
2.2 TDCi 2198 CCM 110 HP 04/2006 - 08/2014
2.2 TDCi 2198 CCM 130 HP 04/2006 - 08/2014
2.2 TDCi RWD 2198 CCM 135 HP 09/2011 - 08/2014
TRANSIT Van (FA_ _)
Description Cylinder Capacity Horse Power Year
2.2 TDCi RWD 2198 CCM 100 HP 10/2011 - 08/2014
2.2 TDCi RWD 2198 CCM 125 HP 09/2011 - 12/2014
2.2 TDCi RWD 2198 CCM 155 HP 10/2011 - 08/2014
2.4 TDCi RWD 2402 CCM 115 HP 04/2006 - 08/2014
2.4 TDCi RWD 2402 CCM 140 HP 04/2006 - 08/2014
2.4 TDCi RWD 2402 CCM 100 HP 04/2006 - 08/2014
2.3 16V RWD 2261 CCM 145 HP 04/2006 - 08/2014
3.2 TDCi RWD 3199 CCM 200 HP 09/2007 - 08/2014
TRANSIT TOURNEO Bus
Description Cylinder Capacity Horse Power Year
2.2 TDCi 2198 CCM 110 HP 07/2006 - 08/2014
2.2 TDCi 2198 CCM 131 HP 07/2006 - 08/2014
2.2 2198 CCM 125 HP 10/2011 - 08/2014

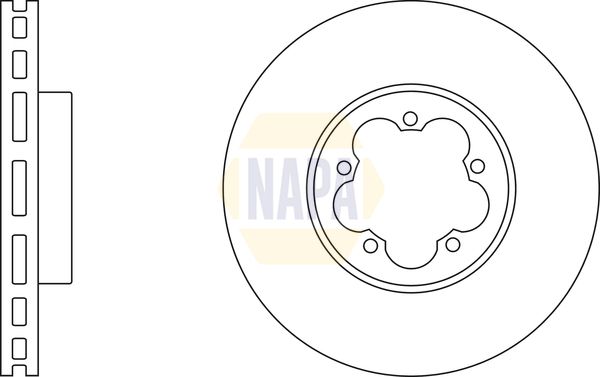

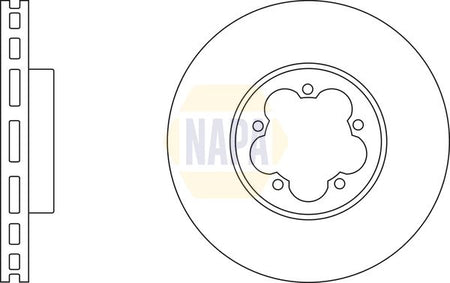

The Napa NBD5970 Brake Disc is a replacement braking component that provides the rotating friction surface acted on by the pads or shoes. Its catalogue specification records vented disc construction, 300 mm outer diameter, 28 mm brake disc thickness, and 93 mm centering diameter. Match the reference, diameter, thickness, mounting pattern and vehicle application before fitting; braking components should be installed and checked by a competent person.

Function : Brake Disc
Brake Disc Type : Vented
Outer Diameter [mm] : 300
Brake Disc Thickness [mm] : 28
Height [mm] : 54
Bolt Hole Circle Ø [mm] : 112
Centering Diameter [mm] : 93
Number of Holes : 5
Test Mark : 90R-02C0448/0939
  • Vendor NAPA
  • SKU NBD5970
  • Barcode 5056667481565
  • FORD : 1543340 2256891 8C1V1125AA ME8C1J1125AA
  • BLUE PRINT : ADF124330
  • BORG & BECK : BBD4520
  • BORG & BECK : BBD4562
  • BORG & BECK : BBD5341
  • FEBI BILSTEIN : 44034
