Napa NBD5971 Brake Disc - 1
Napa NBD5971 Brake Disc - 1
NAPA

Napa NBD5971 Brake Disc

SKU: NBD5971
Your selected vehicle
Only 2 left
Low inventory - Hurry! — Order by 17:00 for same-day dispatch
£39.68 inc. VAT
Pay in 3 interest-free payments with Klarna

Standard delivery

Free standard delivery is available for eligible UK mainland orders. Charges may apply for express services and non-mainland destinations. See our delivery information for details.

MAZDA
3 (BM, BN)
Description Cylinder Capacity Horse Power Year
1.5 1496 CCM 100 HP 09/2013 - 05/2019
1.6 (BM4, BN4) 1598 CCM 105 HP 09/2013 - 05/2019
3 Saloon (BM_, BN_)
Description Cylinder Capacity Horse Power Year
1.5 1496 CCM 100 HP 10/2014 - 05/2019

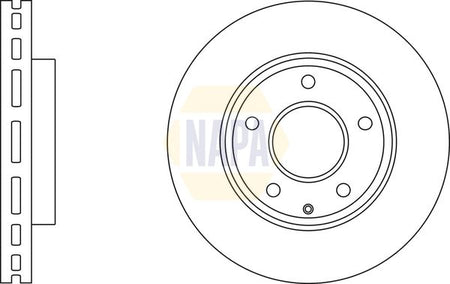

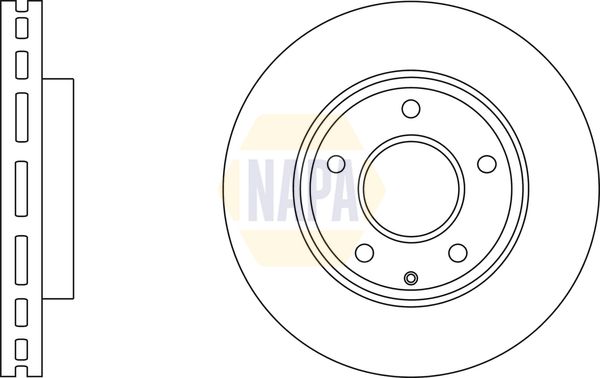

The Napa NBD5971 Brake Disc is a replacement braking component that provides the rotating friction surface acted on by the pads or shoes. Its catalogue specification records vented disc construction, 280 mm outer diameter, 25 mm brake disc thickness, and 68 mm centering diameter. Match the reference, diameter, thickness, mounting pattern and vehicle application before fitting; braking components should be installed and checked by a competent person.

Function : Brake Disc
Brake Disc Type : Vented
Outer Diameter [mm] : 280
Brake Disc Thickness [mm] : 25
Height [mm] : 51
Bolt Hole Circle Ø [mm] : 114
Centering Diameter [mm] : 68
Number of Holes : 5
Test Mark : 90R-02C0448/1337
  • Vendor NAPA
  • SKU NBD5971
  • Barcode 5056667481572
  • MAZDA : B45A33251A BJS7-33-251A BKC3-33-251
  • BLUE PRINT : ADM543129
  • BORG & BECK : BBD5380
  • DELPHI : BG4712C
