Napa NBD5977 Brake Disc - 1
Napa NBD5977 Brake Disc - 1
NAPA

Napa NBD5977 Brake Disc

SKU: NBD5977
Your selected vehicle
In stock
Order by 17:00 for same-day dispatch
£50.34 inc. VAT
Pay in 3 interest-free payments with Klarna

Standard delivery

Free standard delivery is available for eligible UK mainland orders. Charges may apply for express services and non-mainland destinations. See our delivery information for details.

FORD
ECOSPORT
Description Cylinder Capacity Horse Power Year
1.0 EcoBoost 998 CCM 125 HP From 10/2013
1.0 EcoBoost 998 CCM 140 HP From 03/2016
1.5 TDCi 1499 CCM 100 HP From 05/2015
1.5 TDCi EcoBlue 4x4 1499 CCM 125 HP From 11/2017
1.5 TDCi EcoBlue 1499 CCM 125 HP From 11/2017
1.0 EcoBoost 998 CCM 100 HP From 04/2018
1.5 TDCi EcoBlue 1499 CCM 120 HP From 11/2019
1.5 EcoBlue TDCi 1499 CCM 100 HP From 11/2017
1.0 EcoBoost 998 CCM 95 HP From 04/2020

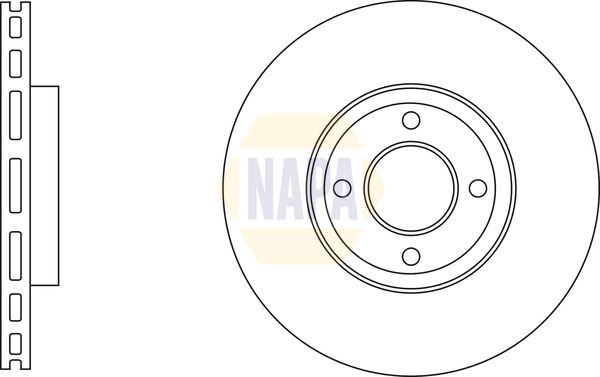

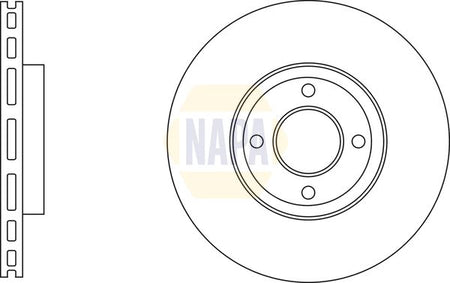

The Napa NBD5977 Brake Disc is a replacement braking component that provides the rotating friction surface acted on by the pads or shoes. Its catalogue specification records vented disc construction, 300 mm outer diameter, 25 mm brake disc thickness, and 64 mm centering diameter. Match the reference, diameter, thickness, mounting pattern and vehicle application before fitting; braking components should be installed and checked by a competent person.

Function : Brake Disc
Brake Disc Type : Vented
Outer Diameter [mm] : 300
Brake Disc Thickness [mm] : 25
Height [mm] : 40
Bolt Hole Circle Ø [mm] : 108
Centering Diameter [mm] : 64
Number of Holes : 4
Test Mark : 90R-02C0349/1159
  • Vendor NAPA
  • SKU NBD5977
  • Barcode 5056758941916
  • FORD : 2147409 GN151125CA
  • BLUE PRINT : ADBP430199
  • BORG & BECK : BBD5625
  • DELPHI : BG5043C
  • FEBI BILSTEIN : 192733
  • SKF : VKBD 81354 V1
