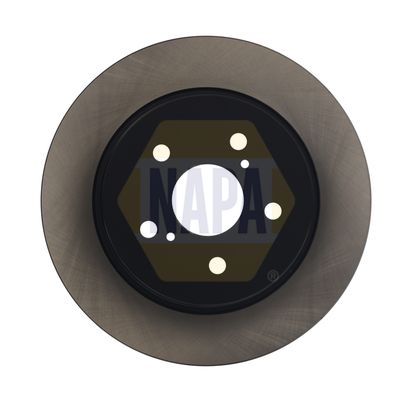

Napa NBD5980 Brake Disc - 1
Napa NBD5980 Brake Disc - 2
Napa NBD5980 Brake Disc - 1
Napa NBD5980 Brake Disc - 2
NAPA

Napa NBD5980 Brake Disc

SKU: NBD5980
Your selected vehicle
Out of stock
Out of Stock
£45.78 inc. VAT
Pay in 3 interest-free payments with Klarna

Standard delivery

Free standard delivery is available for eligible UK mainland orders. Charges may apply for express services and non-mainland destinations. See our delivery information for details.

TOYOTA
C-HR (_X1_)
Description Cylinder Capacity Horse Power Year
1.2 (NGX10_, NGX10R) 1197 CCM 116 HP From 10/2016
1.2 4WD (NGX50_, NGX50R) 1197 CCM 116 HP From 10/2016
1.8 Hybrid (ZYX10_, ZYX11_, ZYX10R, ZYX11R) 1798 CCM 122 HP From 10/2016
1.2 4WD (NGX50) 1197 CCM 131 HP From 10/2016
2.0 Hybrid (MAXH10) 1987 CCM 184 HP From 10/2019
C-HR VAN (_X1_)
Description Cylinder Capacity Horse Power Year
1.8 Hybrid (ZYX10, ZYX11) 1798 CCM 122 HP From 10/2016

The Napa NBD5980 Brake Disc is a replacement braking component that provides the rotating friction surface acted on by the pads or shoes. Its catalogue specification records solid disc construction, 292 mm outer diameter, 11 mm brake disc thickness, and 62 mm centering diameter. Match the reference, diameter, thickness, mounting pattern and vehicle application before fitting; braking components should be installed and checked by a competent person.

Function : Brake Disc
Brake Disc Type : solid
Outer Diameter [mm] : 292
Brake Disc Thickness [mm] : 11
Height [mm] : 51
Bolt Hole Circle Ø [mm] : 114
Centering Diameter [mm] : 62
Number of Holes : 5
Test Mark : 90R-02C0355/0838
  • Vendor NAPA
  • SKU NBD5980
  • Barcode 5056758941947
  • TOYOTA : 42431F4020
  • BLUE PRINT : ADBP430131
  • BORG & BECK : BBD5665
  • DELPHI : BG5169C
  • FEBI BILSTEIN : 179054
